2016 Streamlining the filament loading process, formerly slow, inconsistent and cumbersome, was our priority.
With Quick Release featuring an intuitive thumb-screw and flexible hinge, loading and unloading filament became effortless, offering tool-free operation and maintaining consistent pre-tension settings for seamless user experience and reliable parts production.
Bondtech’s Quick Release solution quickly became a standard in the industry, revolutionizing 3D printing and making it easier for all.
Intuitive and easy to use
Release filament pre-tension using your thumb and index fingers.
Simple load and unload
Drive gears are set far apart for easy filament load and unload.
Tweak filament pre-tension
Turn the thumbscrew to fine tune the distance between drive gears.
A better and affordable way
Simple, easy and cheap while being a better solution for 3D printer users.
Find this tech in these products
Yes sir that is it, thank you for such great service! Thanks so much for all the assistance getting this working perfectly. I really appreciate it and I can't recommend you guys enough.
Sean ★ ★ ★ ★ ★
Cyclite.cc
BMG
BMG-M
DDX
(for Prusa) Mini
Drive Gears
⌀ 8.0mm
hardened steel
⌀ 8.0mm
hardened steel
⌀ 8.0mm
hardened steel
⌀ 8.0mm
hardened steel
Pre-tension
Quick Release
hinge
Quick Release
hinge
Quick Release
hinge
Quick Release
hinge
Filament ⌀
1.75 mm
1.75 mm
1.75 mm
1.75 mm
Hotend Mount
Groove
mount
Mosquito
mount
Groove
mount
no
hotend mount
Extruder (Motor Weight)
99g
99g
99 g
(280g)
99g
Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
Target Markets
Home
Maker
Professional
Industrial
Home
Maker
Professional
Industrial
Home
Maker
Professional
Industrial
Home
Maker
Professional
Industrial
Usage Level
low
moderate
high
intensive
low
moderate
high
intensive
low
moderate
high
intensive
low
moderate
high
intensive
Printer Form Factor
as bowden extruder
light/small
medium
heavy/big
light/small
medium
heavy/big
Printer Form Factor
as direct extruder
light/small
medium
heavy/big
light/small
medium
heavy/big
light/small
medium
heavy/big
Motor included?
QR Standard 1.75
QR Mirrored 1.75
QR Standard 2.85
QR Mirrored 2.85
SKU
EXT_UNI_1.75
EXT_UNI_1.75_LH
EXT_UNI_3.0
EXT_UNI_3.0_LH
EAN
e-steps
476.5
[ 1.8° @ 16bit]
476.5
[ 1.8° @ 16bit]
492.45
[ 1.8° @ 16bit]
492.45
[ 1.8° @ 16bit]
rotation_distance
6.1756
6.1756
6.498
6.498
Filament ⌀
1.75 mm
1.75 mm
2.85 mm
2.85 mm
Gearing ratio
5:1
5:1
5:1
5:1
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
10Kg+
10Kg+
Motor features
XXXXX
XXXXX
XXXXX
XXXXX
For bowden?
For direct?

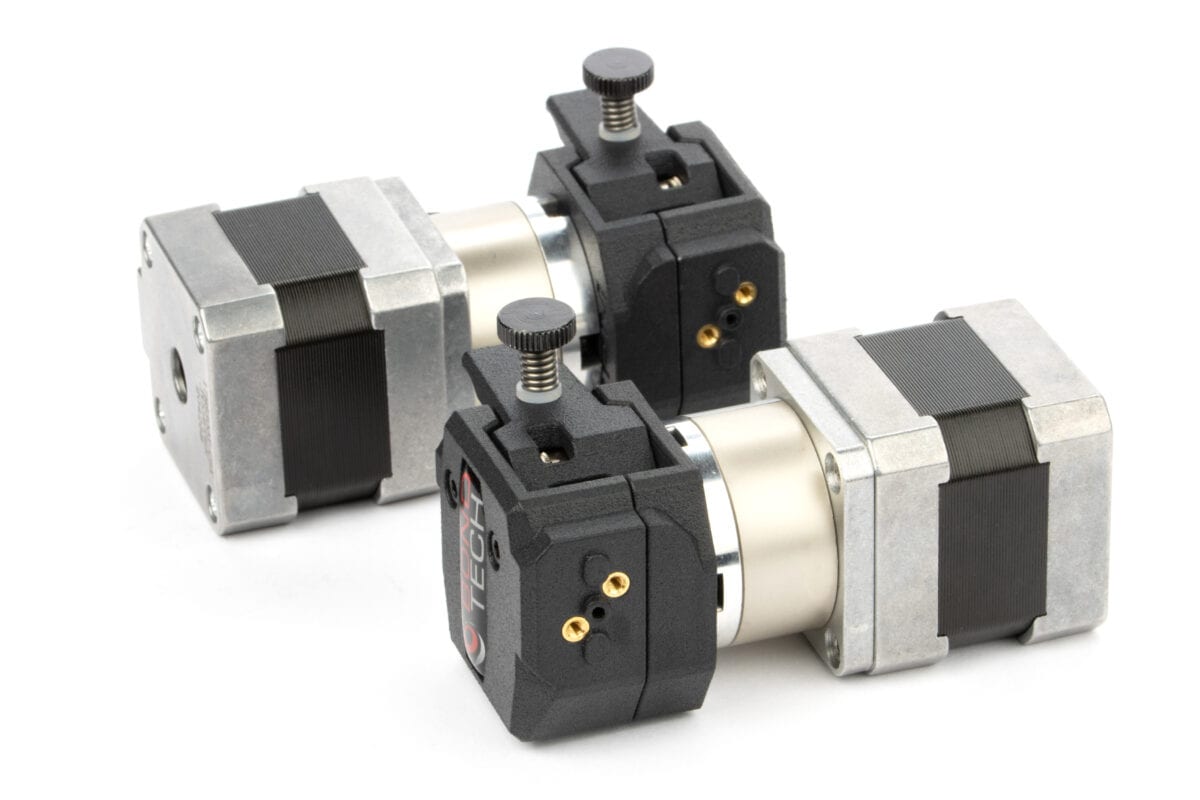

QR-M Standard 1.75

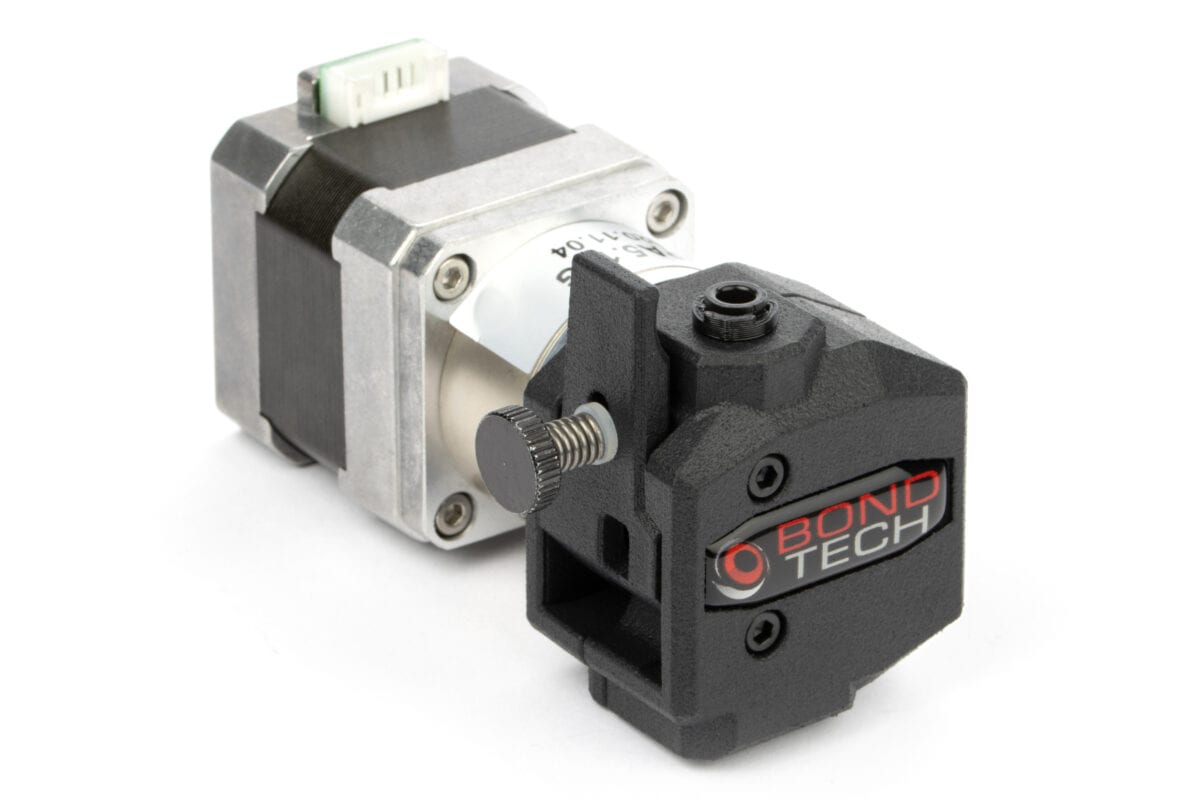

QR-M Mirrored 1.75
QR-M Standard 2.85
QR-M Mirrored 2.85
SKU
EXT-QRM-1.75
EXT-QRM-1.75-LH
EXT-QRM-3.0
EXT-QRM-3.0-LH
EAN
e-steps
476.5
[ 1.8° @ 16bit]
476.5
[ 1.8° @ 16bit]
492.45
[ 1.8° @ 16bit]
492.45
[ 1.8° @ 16bit]
rotation_distance
6.1756
6.1756
6.498
6.498
Filament ⌀
1.75 mm
1.75 mm
2.85 mm
2.85 mm
Gearing ratio
5:1
5:1
5:1
5:1
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
10Kg+
10Kg+
Motor features
XXXXX
XXXXX
XXXXX
XXXXX
For bowden?
For direct?
BMG Standard
extruder
BMG Mirrored
extruder
SKU
EXT-BMG
EXT-BMG-LH
EAN
???
???
e-steps
415
[ 1.8° @ 16bit]
415
[ 1.8° @ 16bit]
rotation_distance
7.71
7.71
Filament ⌀
1.75 mm
1.75 mm
Gearing ratio
3:1
3:1
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
Motor features
Nema17
standard 5 mm shaft
motor not included
Nema17
standard 5 mm shaft
motor not included
For bowden?
For direct?
BMG-M Standard
extruder
BMG-M Mirrored
extruder
SKU
EXT-BMG-M
EXT-BMG-M-LH
EAN
???
???
e-steps
415
[ 1.8° @ 16bit]
415
[ 1.8° @ 16bit]
rotation_distance
7.71
7.71
Filament ⌀
1.75 mm
1.75 mm
Gearing ratio
3:1
3:1
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
Motor features
Nema17
standard 5 mm shaft
motor not included
Nema17
standard 5 mm shaft
motor not included
For bowden?
For direct?
DDX V1
extruder
DDX V2
extruder
DDX V3
extruder
SKU
EXT-KIT-77
EXT-KIT-77-V2
EXT-KIT-77-V3
EAN
???
???
7350011414079
Status
deprecated
deprecated
current
e-steps
415
[ 1.8° @ 16bit]
415
[ 1.8° @ 16bit]
415
[ 1.8° @ 16bit]
rotation_distance
7.71
7.71
7.71
Filament ⌀
1.75 mm
1.75 mm
1.75 mm
Gearing ratio
3:1
3:1
3:1
Part cooling Mount
Side groove
Side groove
Side slot
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
10Kg+
Design features
Original Design
for Ender-3, CR-10
and Ender-5 series
Additional Mounting points
Ender-6 carrier plate compatible
Additional top mounting point
new cooling mount
easier mounting procedure
Motor features
Nema17 25mm
standard 5 mm shaft
motor included
Nema17 25mm
standard 5 mm shaft
motor included
Nema17 25mm
standard 5 mm shaft
motor included
Ender-6 compatible
For bowden?
For direct?
V2 1.75
V2 2.85
SKU
EXT-KIT-10
EXT-KIT-11
EAN
7350011410446
7350011410453
e-steps
476.5
[ 1.8° @ 16bit]
492.45
[ 1.8° @ 16bit]
rotation_distance
6.1756
6.498
Filament ⌀
1.75 mm
2.85 mm
Gearing ratio
5:1
5:1
Max Working Temperature
From 20° C
to 80° C
From 20° C
to 80° C
Push Force
10Kg+
10Kg+
Motor features
XXXXX
XXXXX
For bowden?
For direct?
