Arrow Hotend Upgrade Adapter Set
Mount a Slice hotend on your Creality
CR-6 SE, CR-6 Max or CR-10 Smart 3D printer.
Compatible with the LGX Lite Arrow for Creality

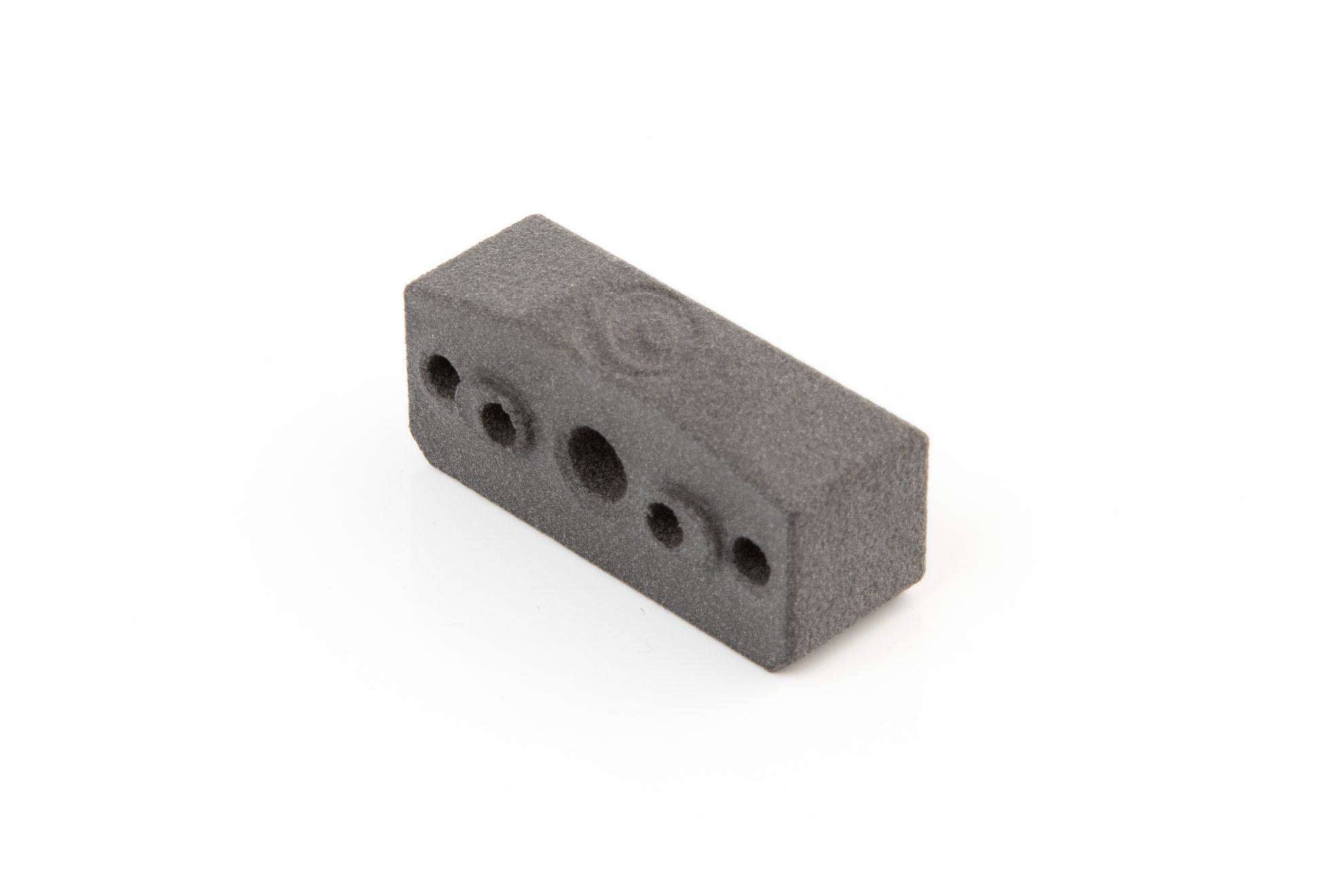

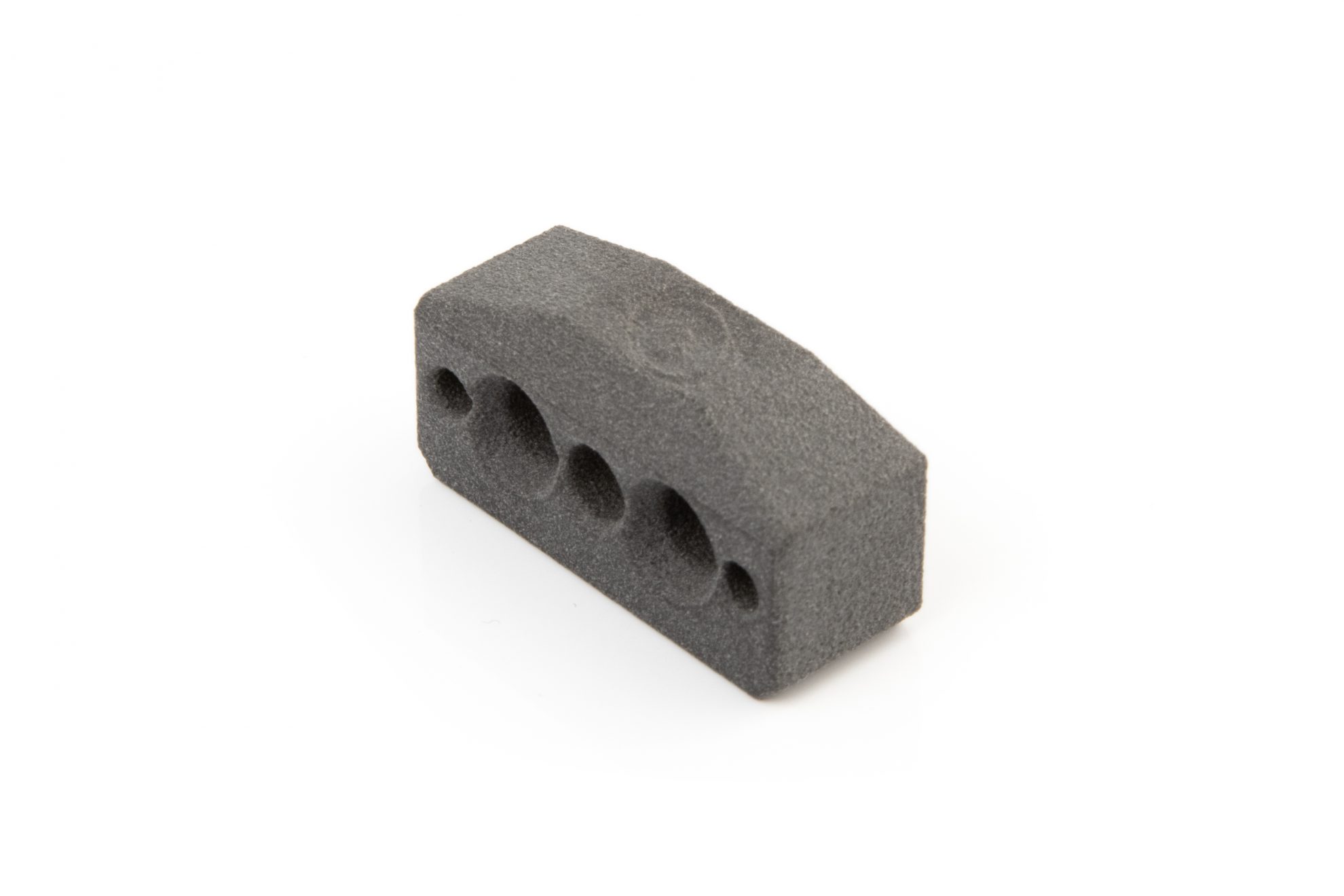

Plastic adapter made of grey Polyamide (PA12) with no dyeing featuring a wax protective coating.
Hotend not included.
A Slice Engineering hotend is required to use this set.
- Copperhead (screw mount only)
- Mosquito
- Mosquito Magnum
Price:
$29.90
In stock (can be backordered)
Chose Currency / Country
Select Currency
Select Country
Description

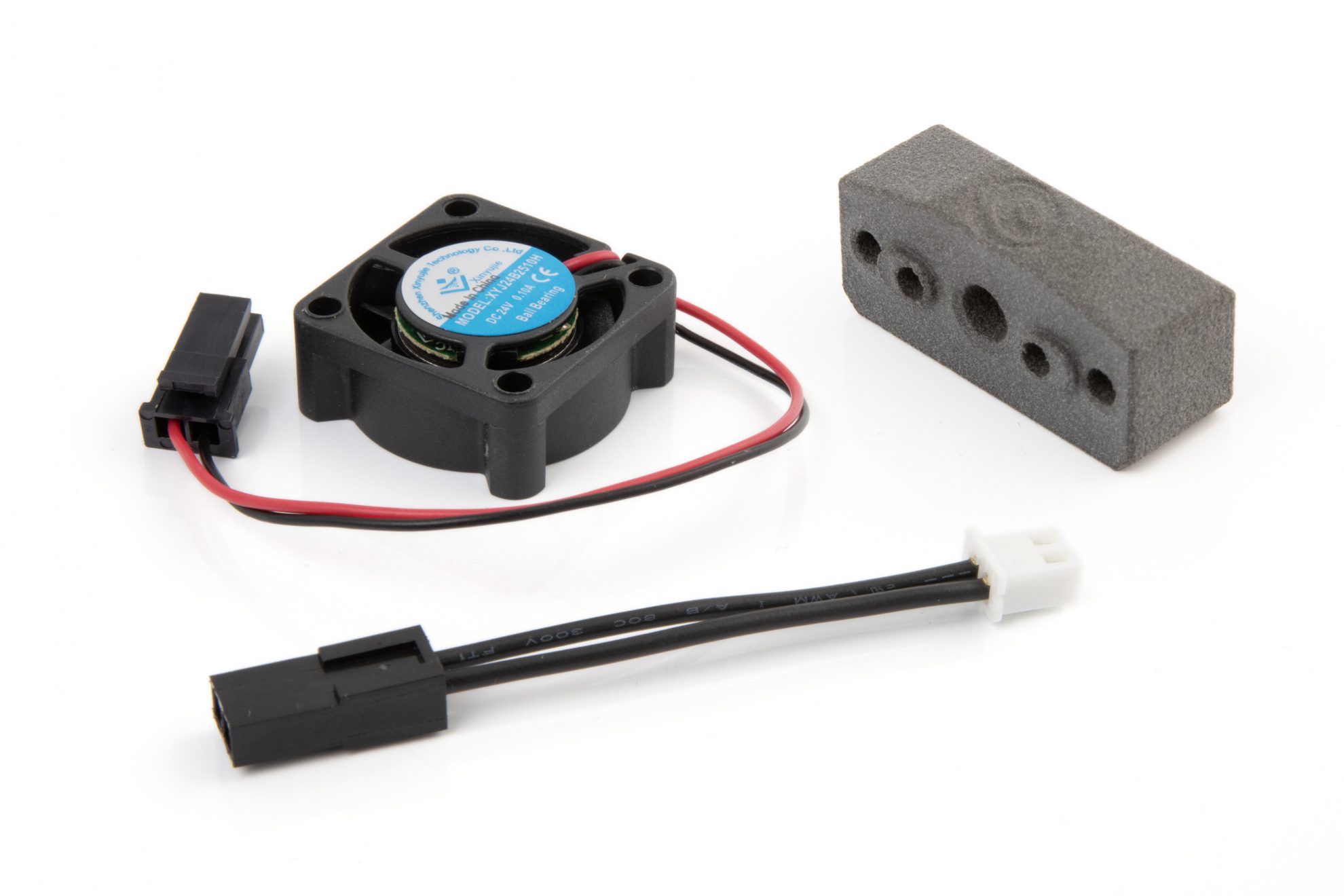

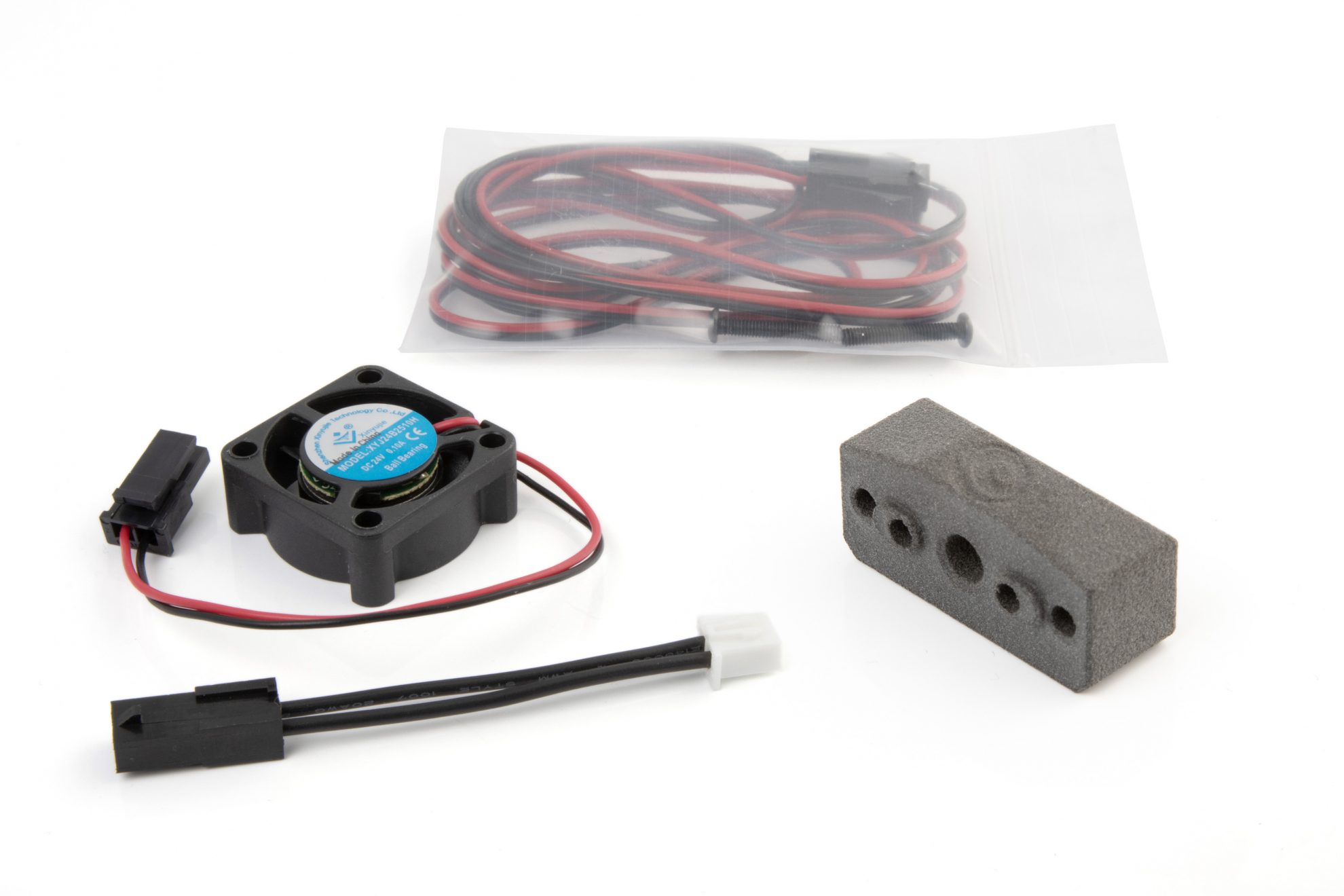

Product includes:
- 1x 10092-09 Slice hotend adapter
- 1x Slice 25mm 24v fan
- 1x HeatLink JST XHP-2 interface cable
- 1x Slice 1m extension cable with JST XHP-2 connector
- 1x 70mm Capricorn tube
Mounting the the adapter
To the mount the adapter on the Strain Gauge plate, use the same screws that were holding the stock hotend.
To mount the hotend on the adapter, use the M2.5x6mm screws included in your Slice Engineering hotend.
Additional information
| Freight Weight | 27 g |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
Setup Guide
Apply the hotend adapter.
Tighten the screws.
Apply the hotend mount.
Tighten the screws.
Apply the extruder
Install the hotend cooling fan.
Setup Guide
Setting Up The Arrow Hotend Upgrade Set

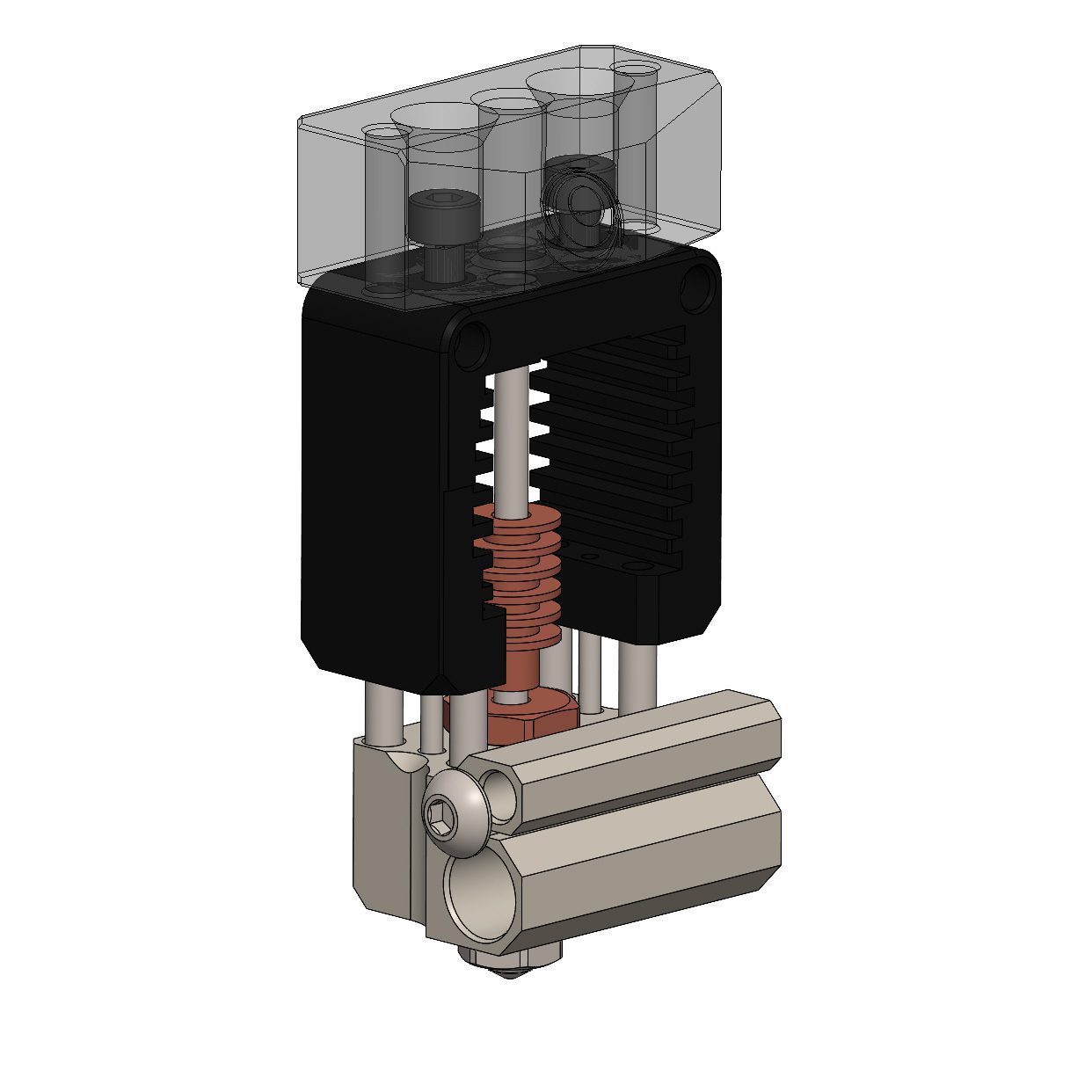

Apply the hotend adapter.
Mind the Hot Block orientation.
Step 1

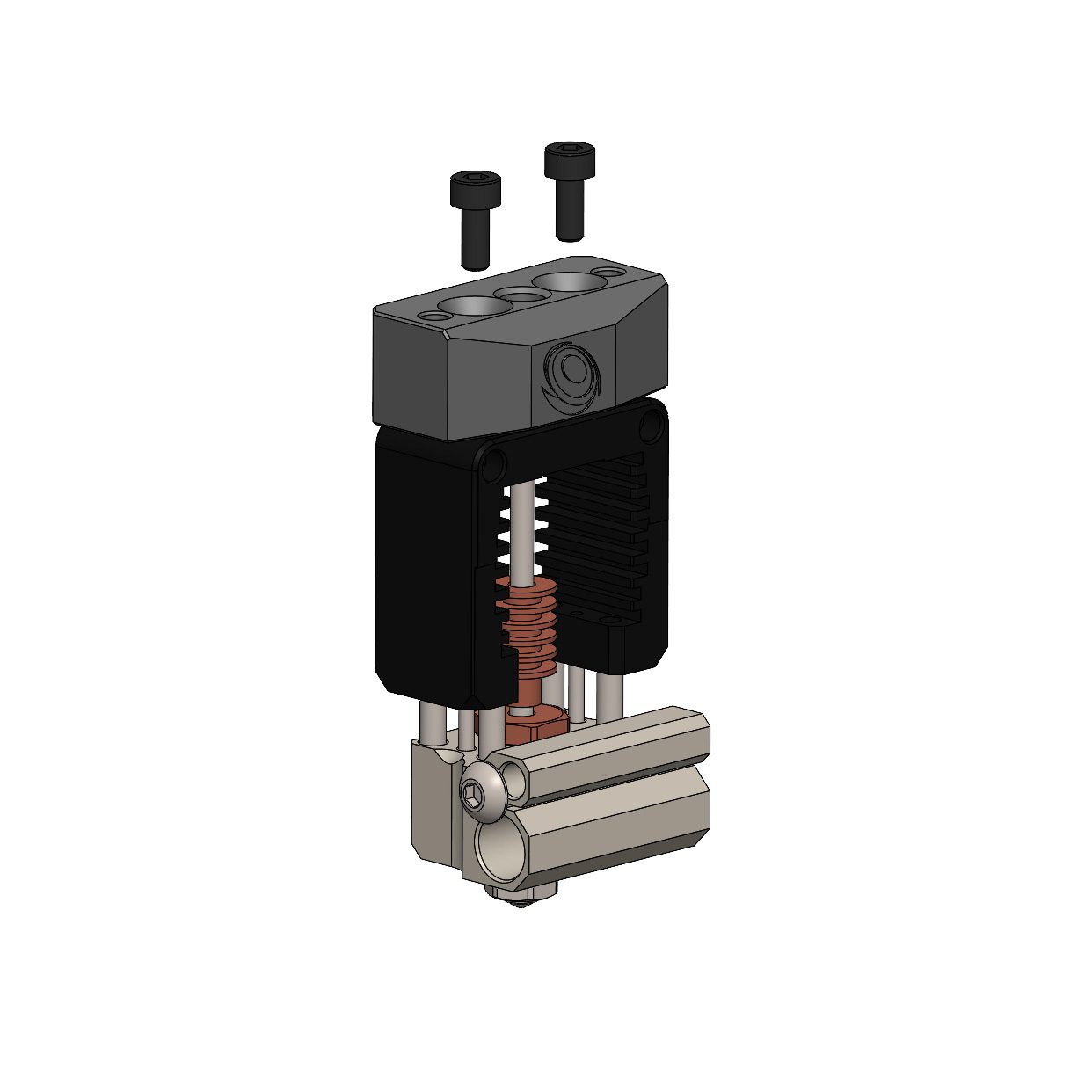

Tighten the screws.
Don't overtighten.
Step 2

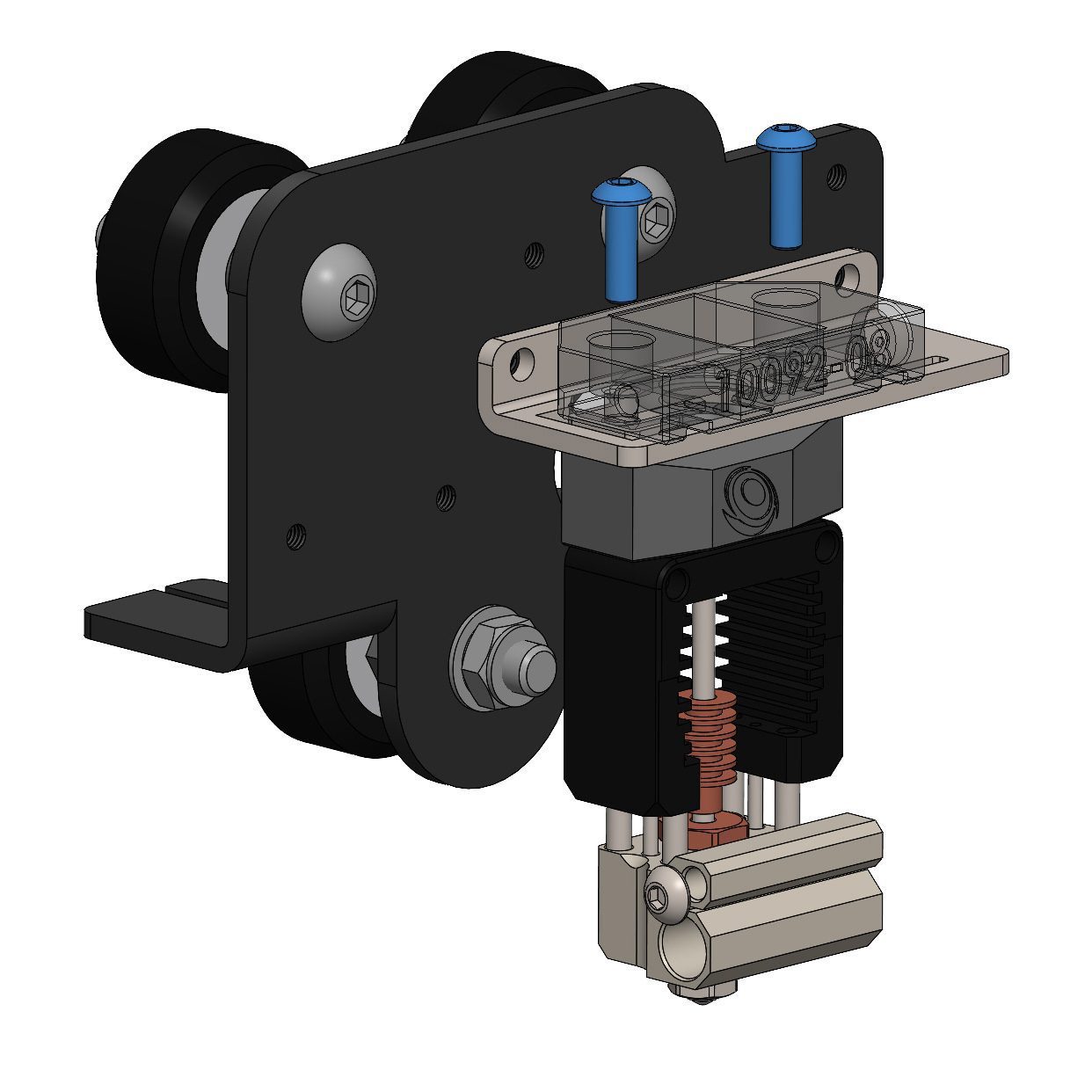

Apply the hotend mount.
Join it with the hotend adapter.
Step 3
Tighten the screws.
Don't overtighten.
Step 4

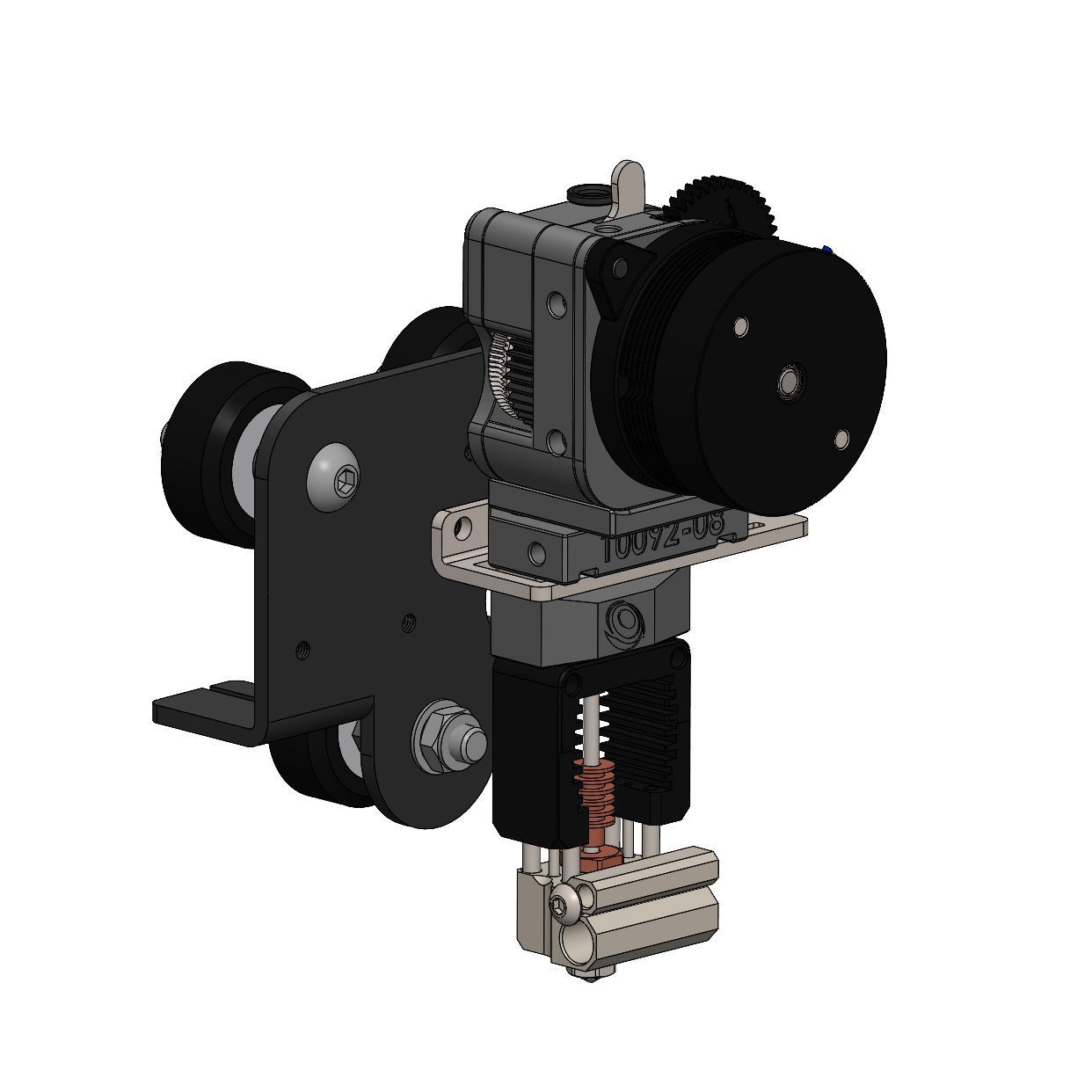

Apply the extruder
and extruder mount.
Step 5

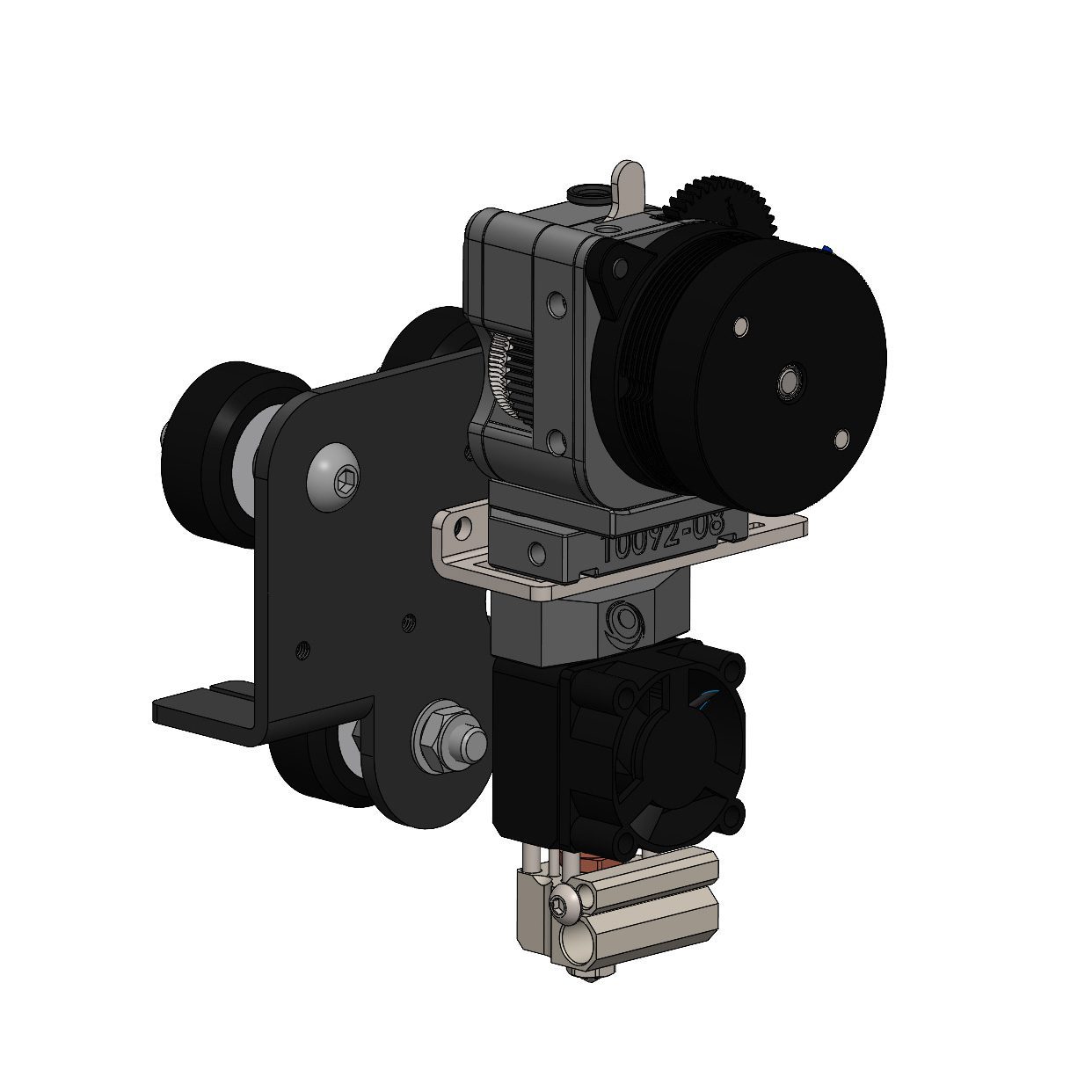

Install the hotend cooling fan.
Mind the fan orientation.
Step 6
