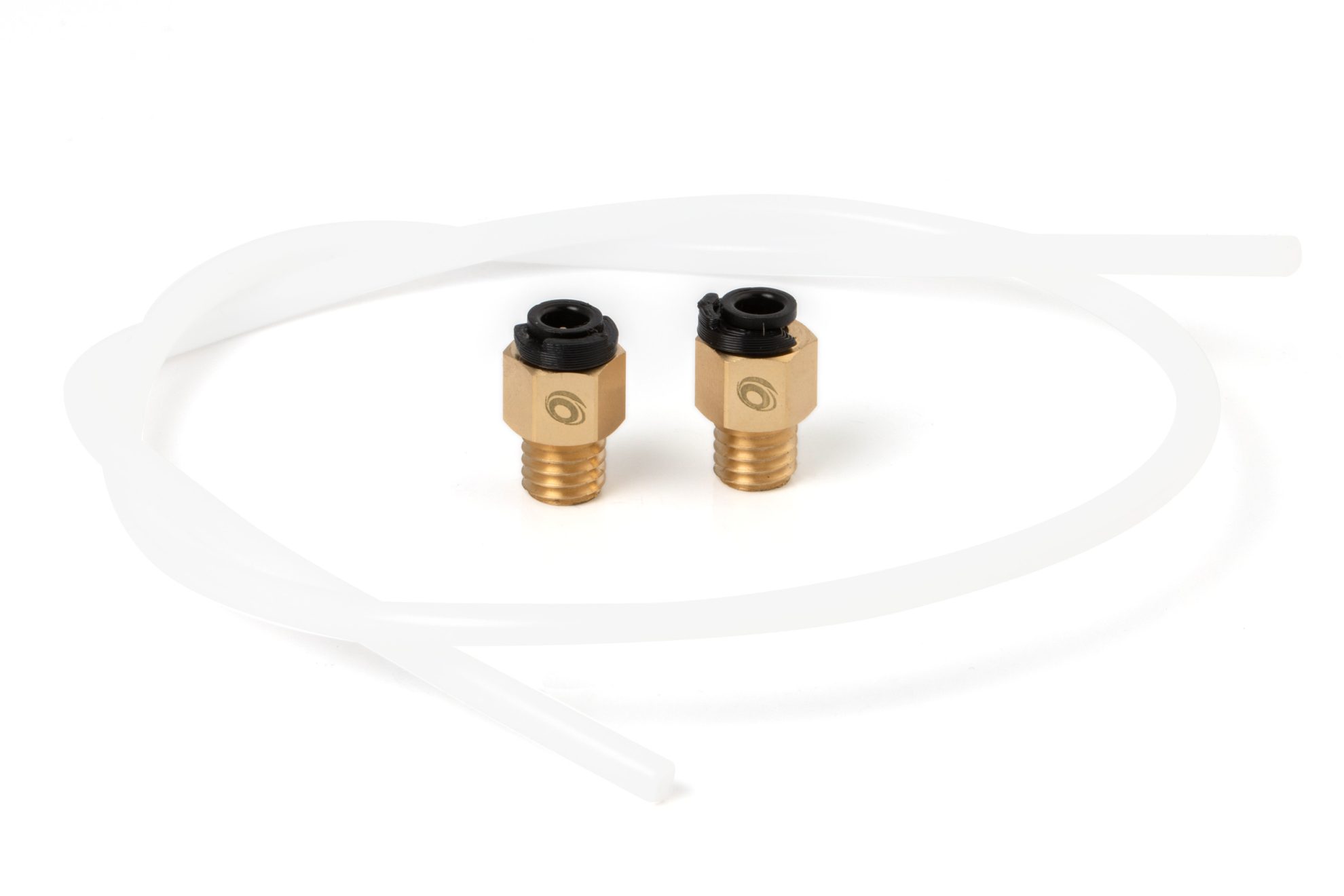

PTFE Fittings Set for Prusa Mini
Use this set to simplify how to install, use and maintain Prusa Mini’s bowden tube.
In stead of using 3 PTFE tube sections, use one only.
Includes push-fit collets for ease of use and effective hold of the tube.

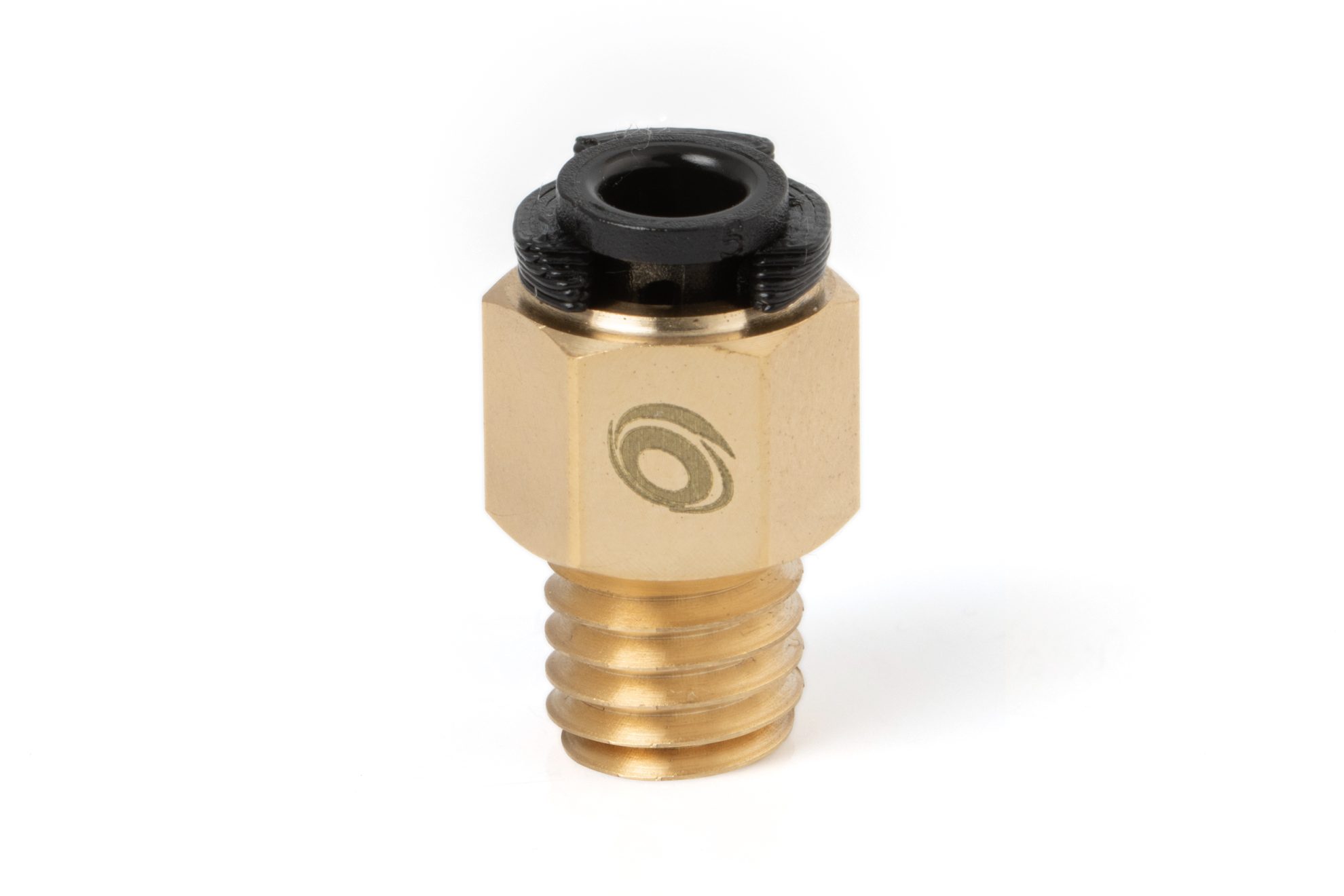

Pipe fittings are machined in Brass by Bondtech
Price:
$14.90
In stock
Chose Currency / Country
Select Currency
Select Country
Description
Product includes:
- 2x Bowden Fitting for Prusa Mini

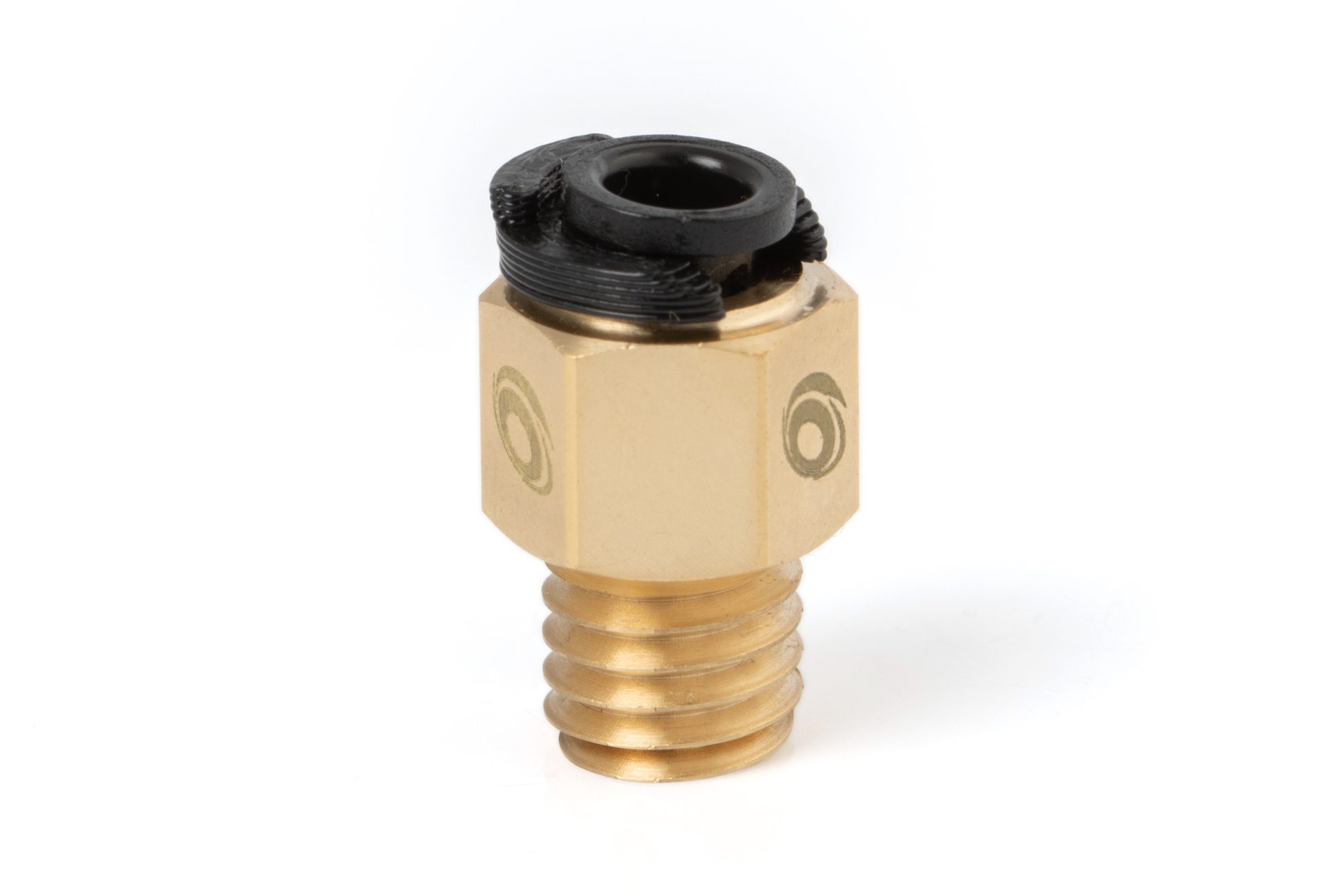

- 2x Push-fit collet 4mm
- 2x Bowden clip 1.75
- 1x 360mm long chamfered PTFE Tube 2/4 mm
Additional information
| Freight Weight | 19 g |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
Setup Guide
Setup Guide
Required for the setup:
- Bondtech PTFE fittings set for Prusa Mini
- 8mm Wrench / Spanner (included with the mini)
- Permanent marker (optional)

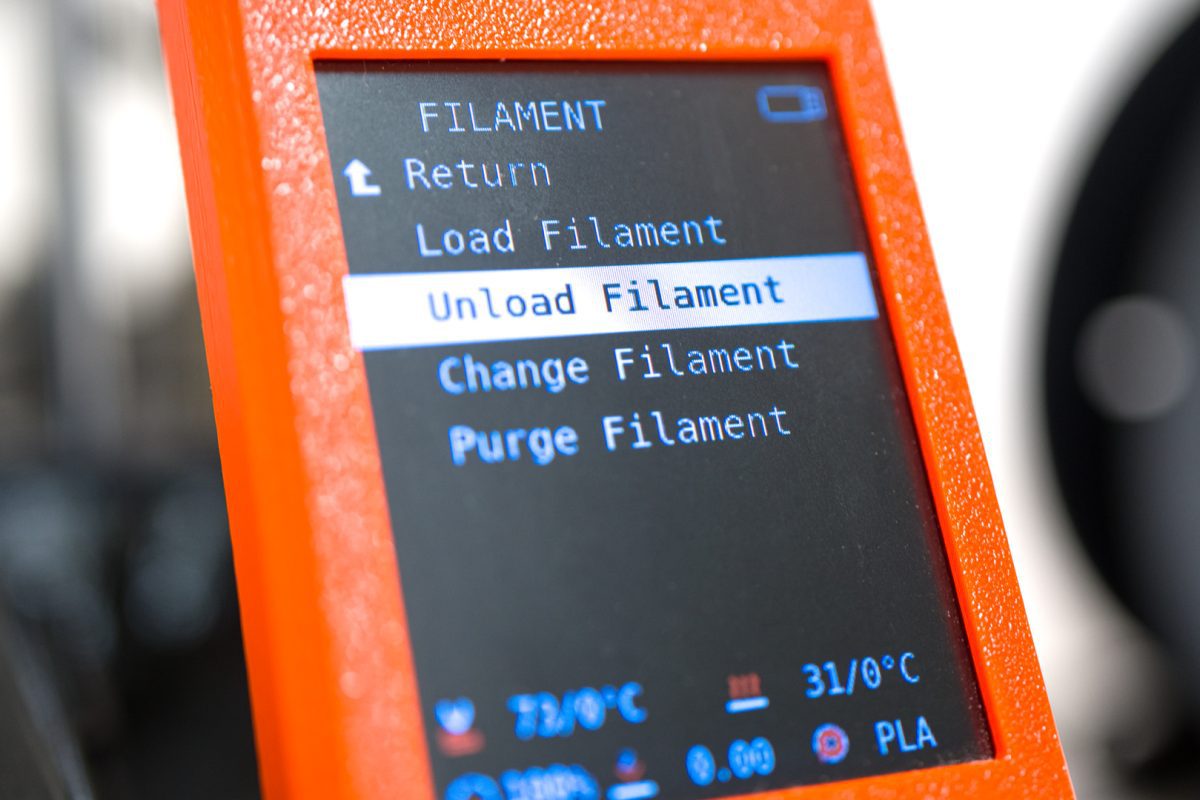

1: Heat up, Unload filament, cooldown.

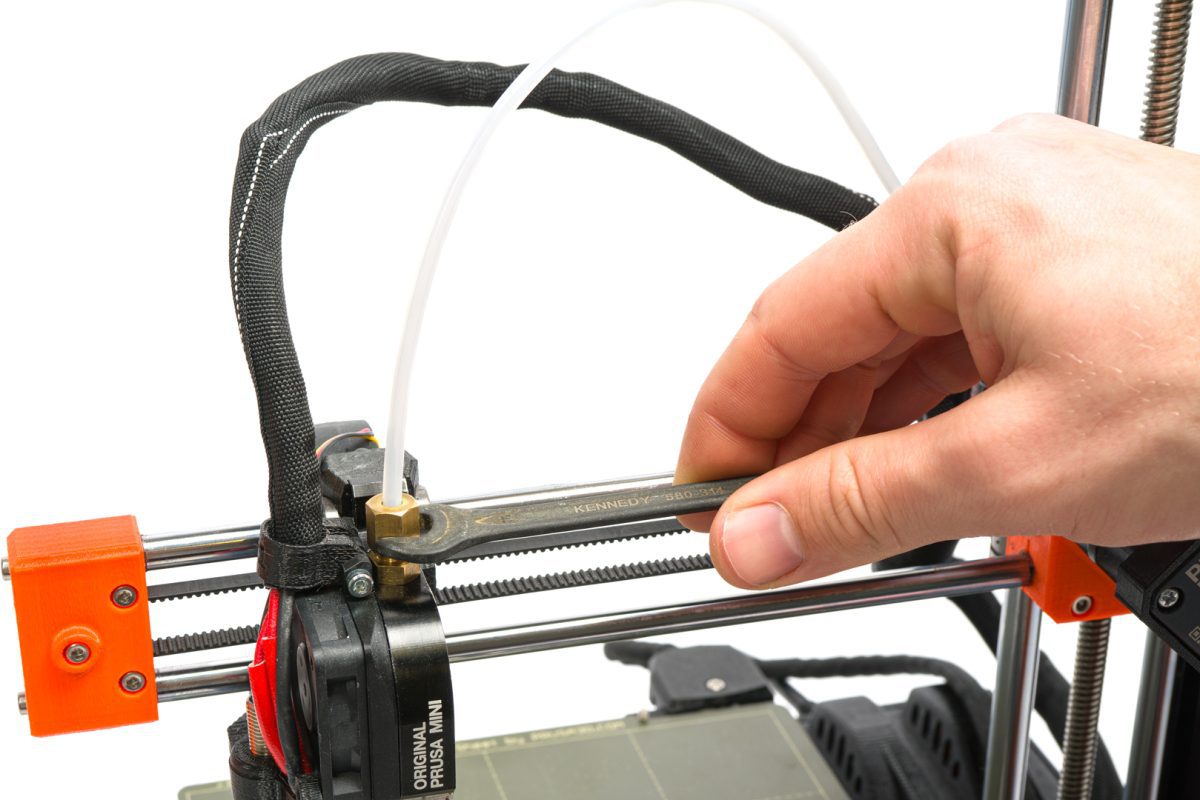

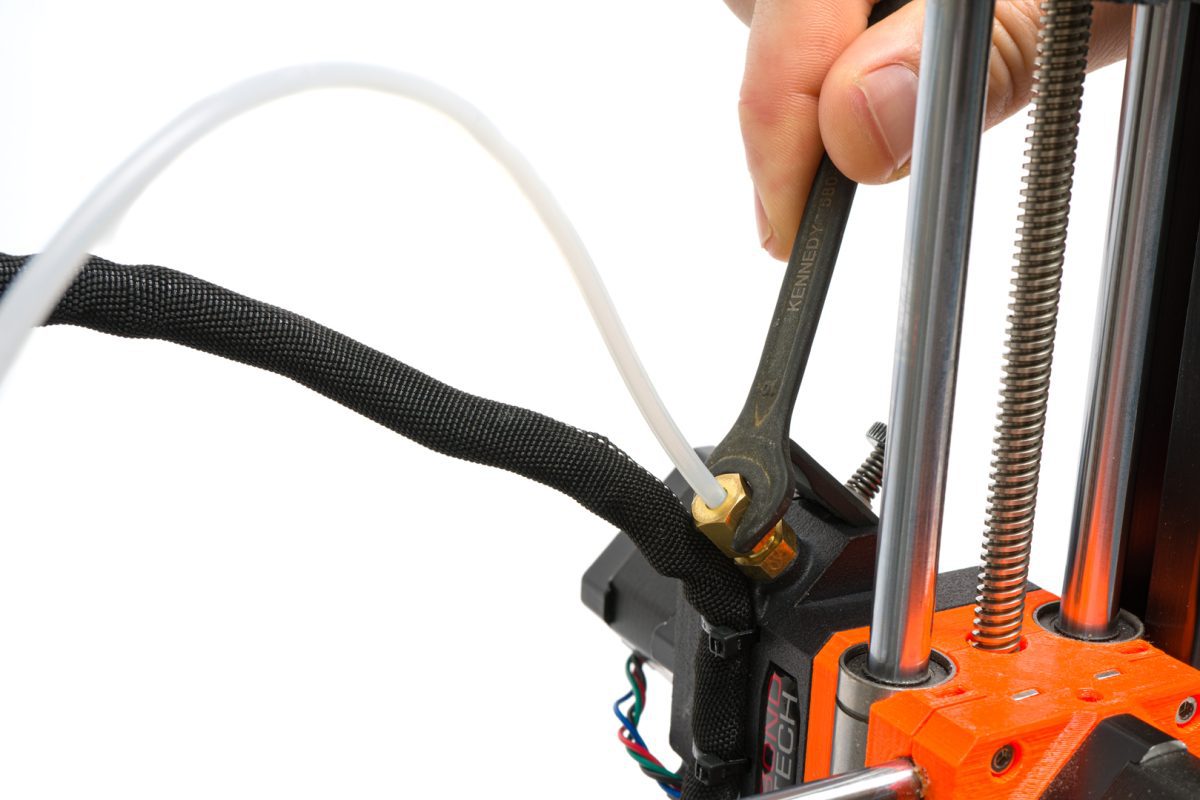

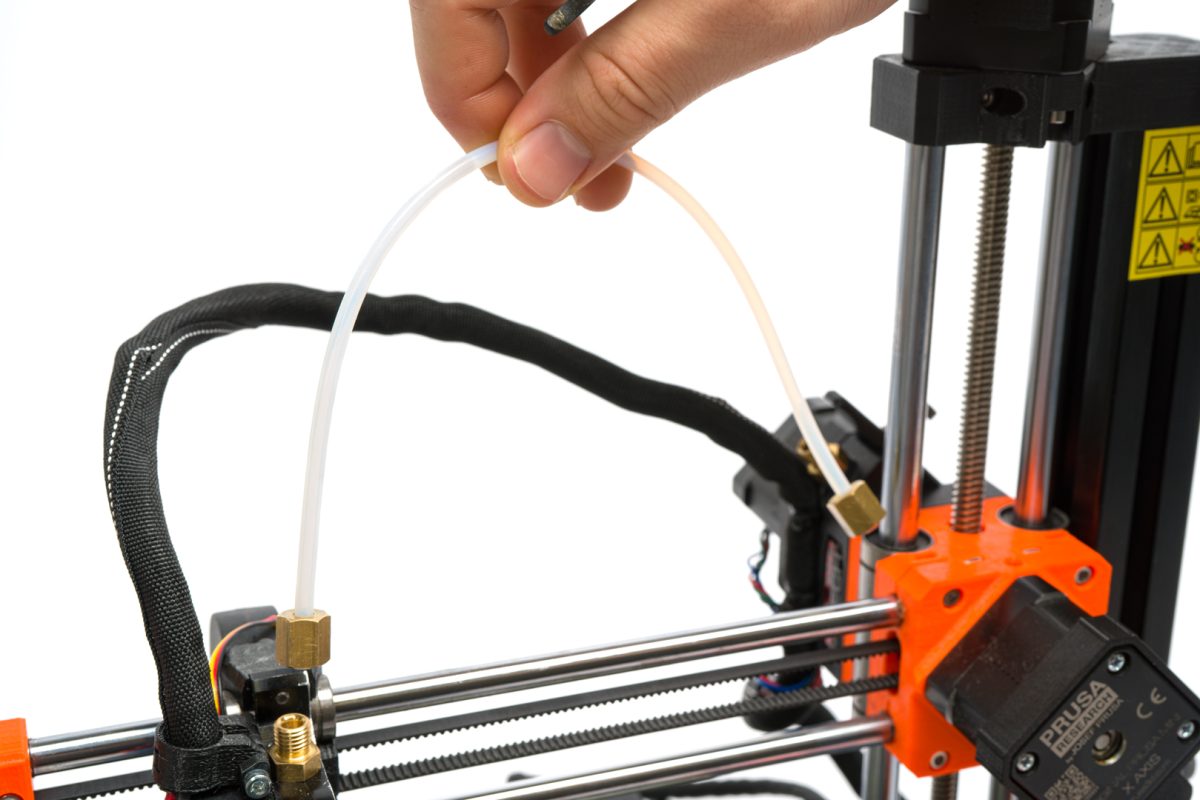

2: Unscrew nut on extruder, unscrew nut on Hotend, remove long PTFE tube.

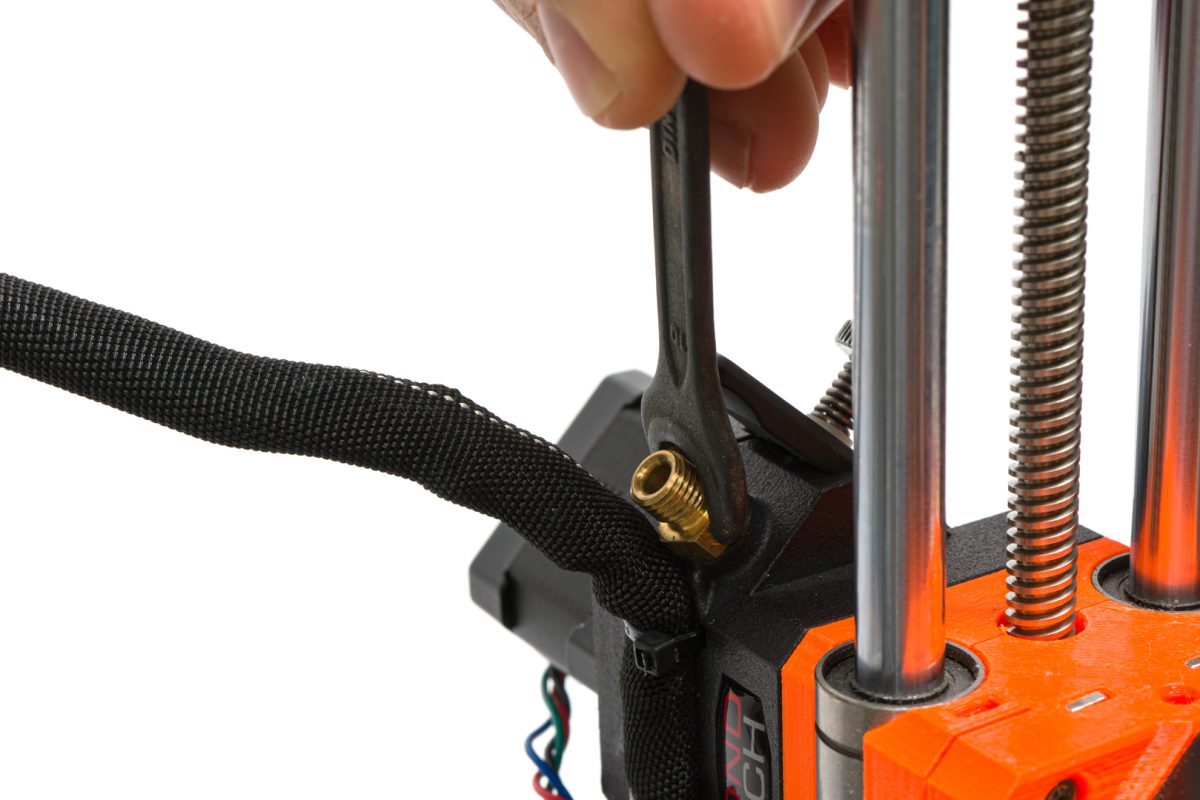

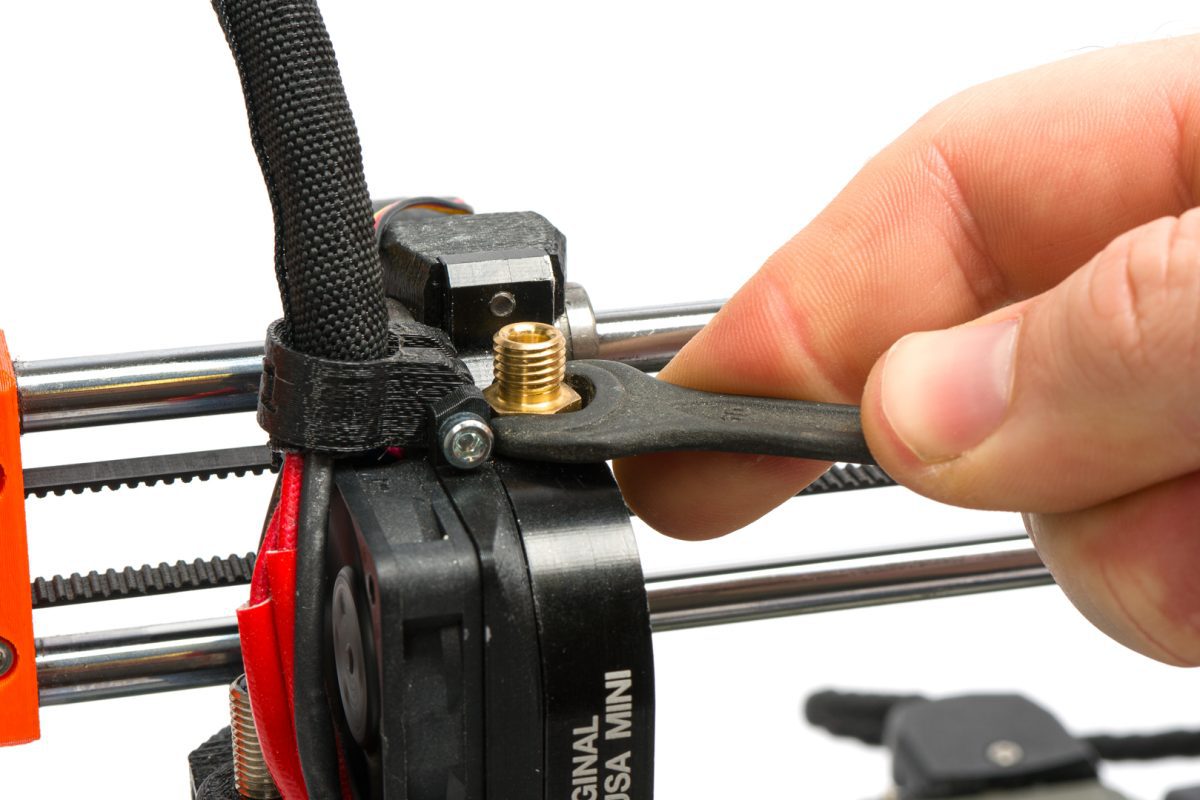

3: Remove stock pipe fitting in hotend and extruder.

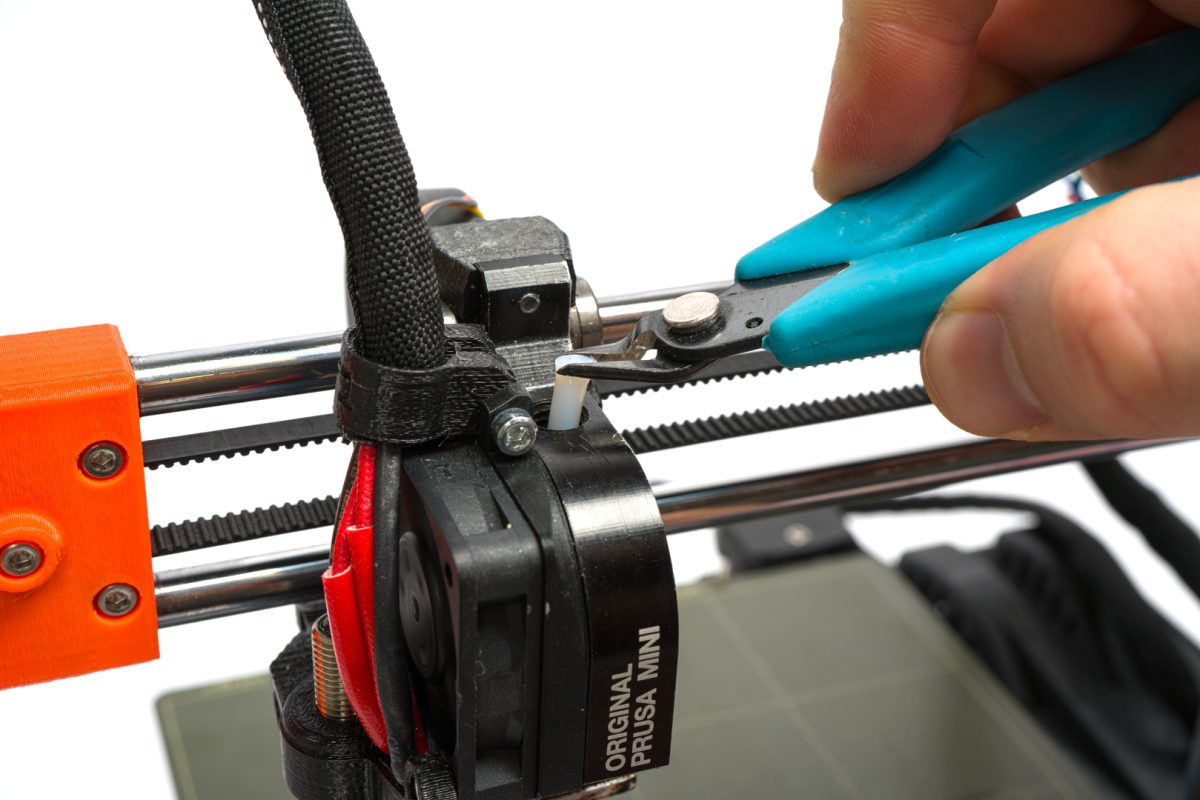

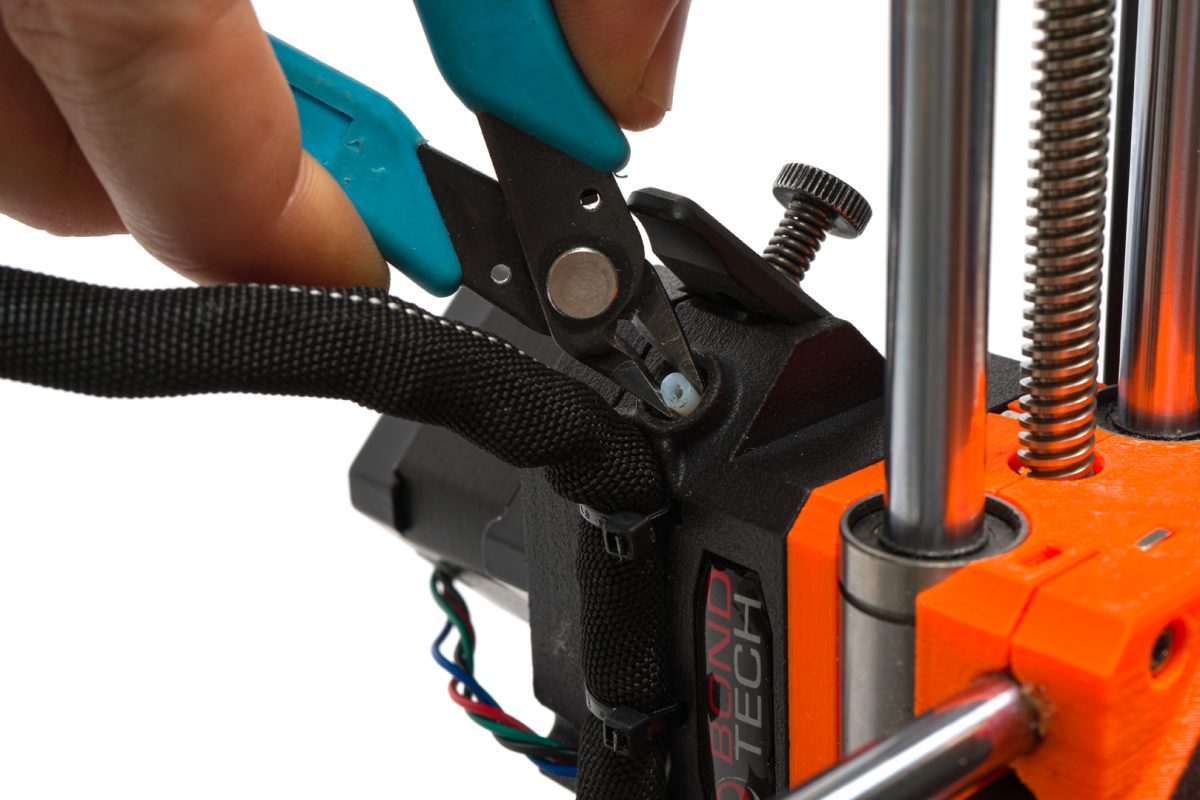

4: Remove stock PTFE tube in hotend and extruder.

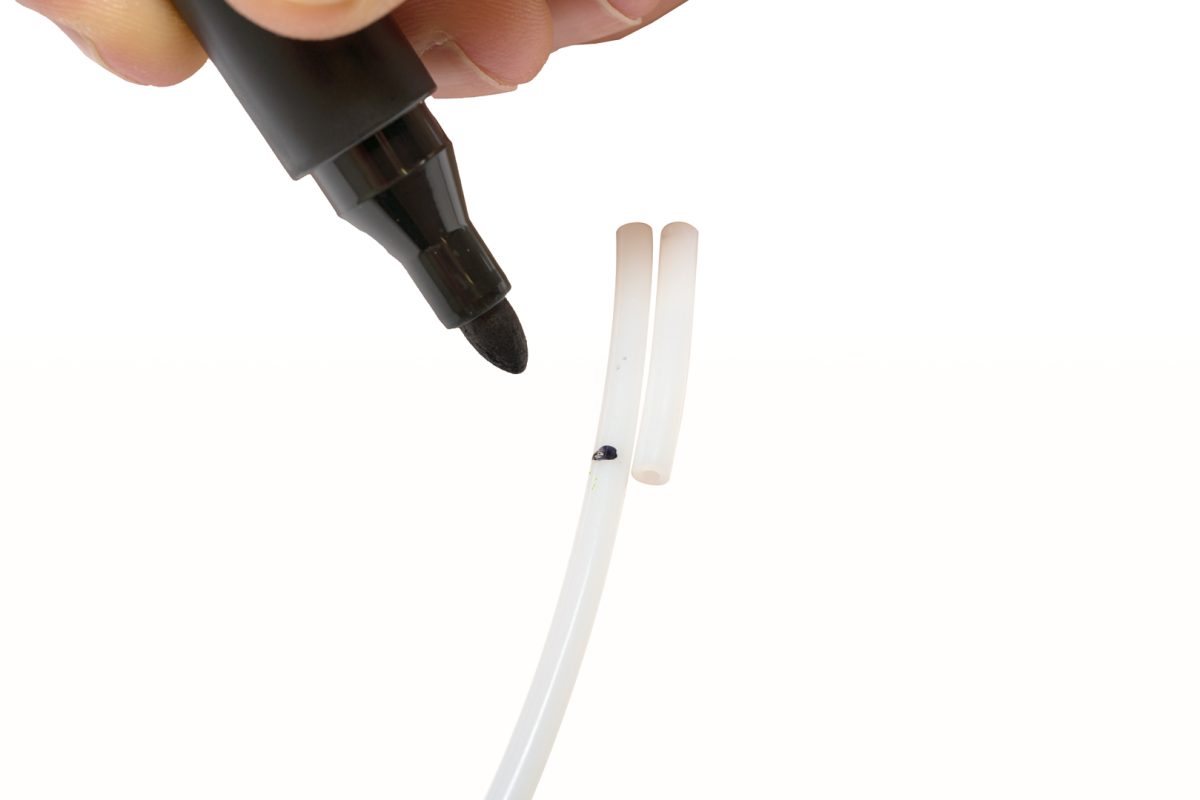

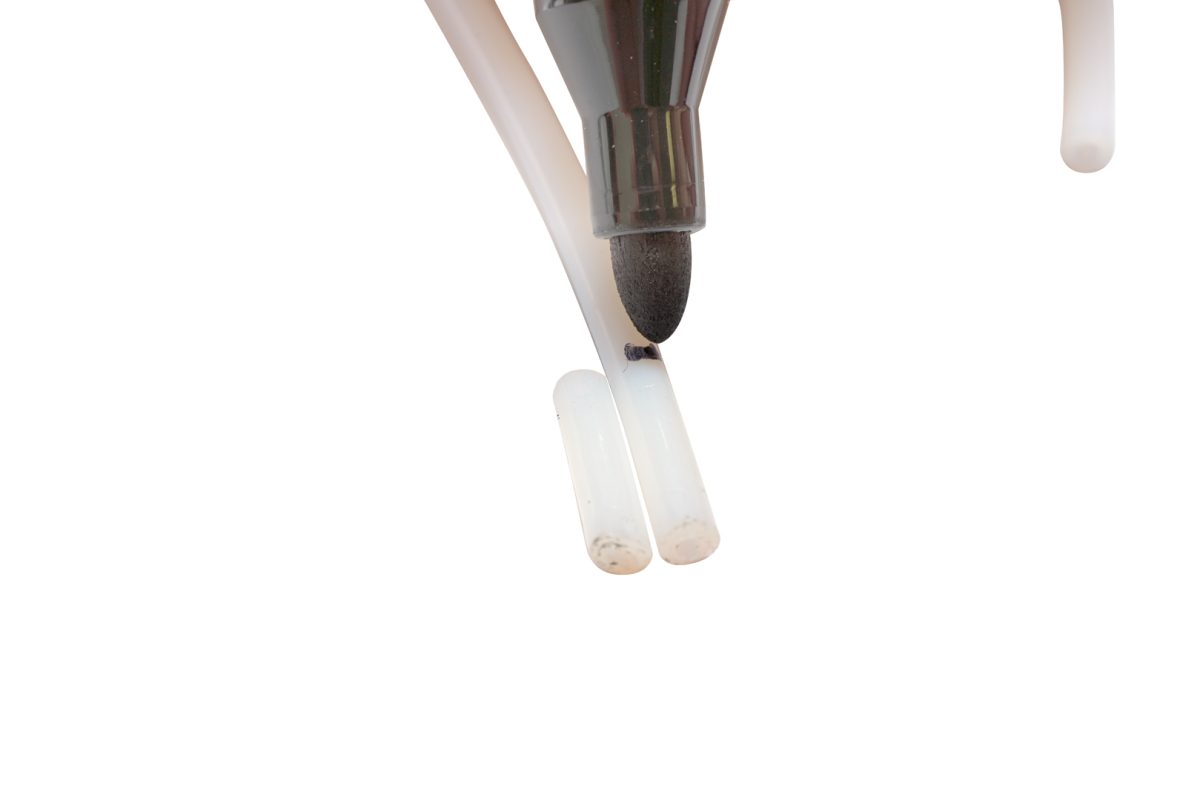

5: (optional) : Use removed PTFE tubes and a marker to make a validation marking for PTFE tube insert depth, to make sure it seats all the way down.

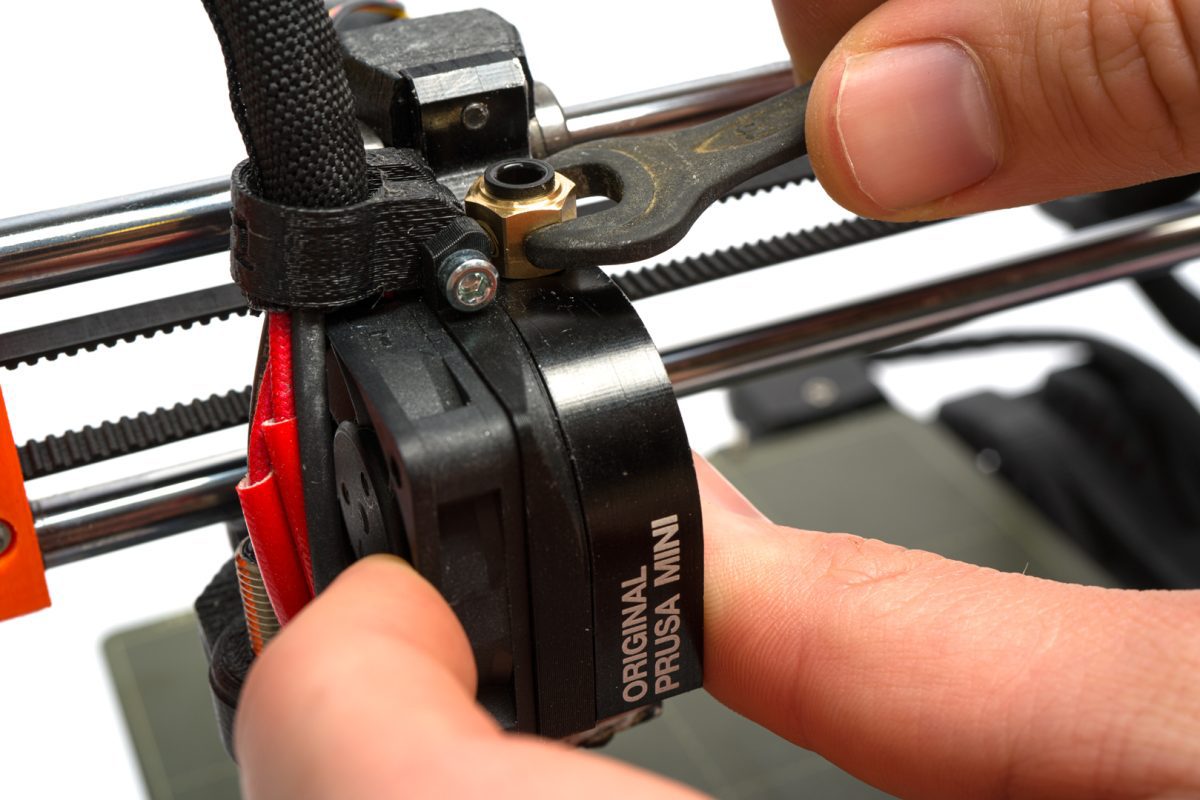

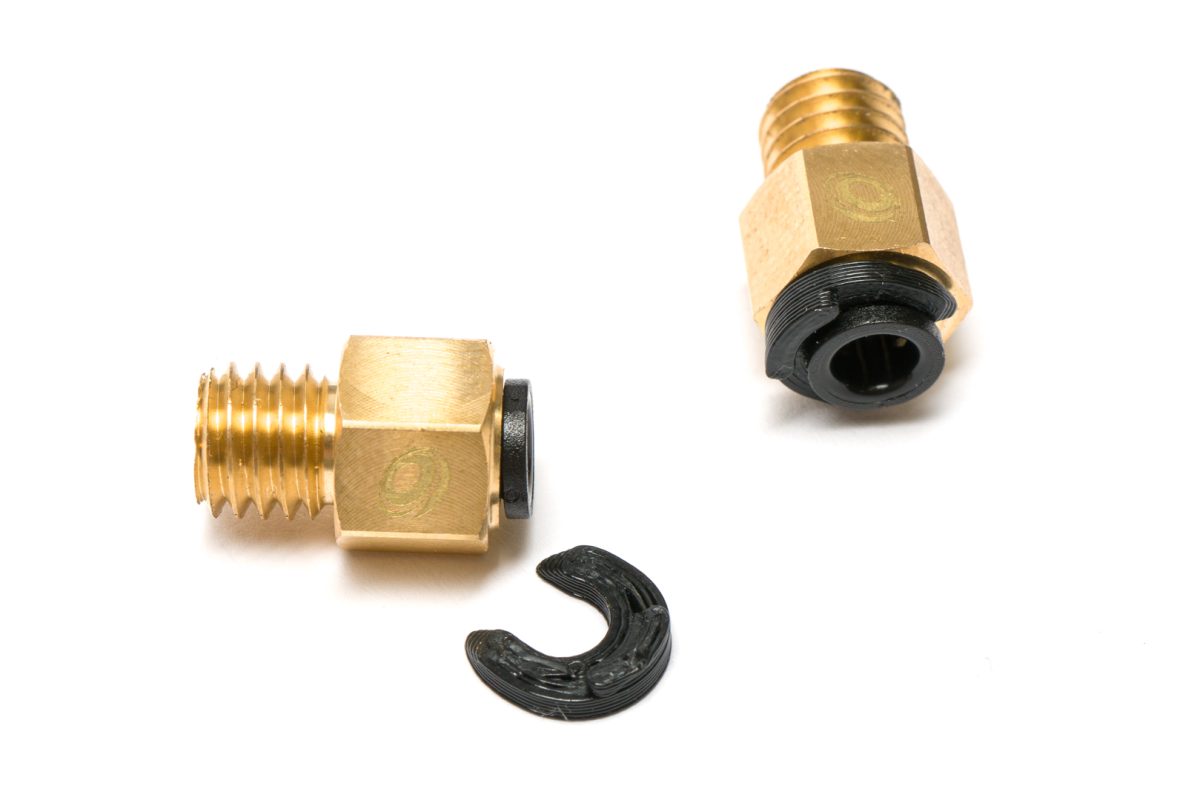

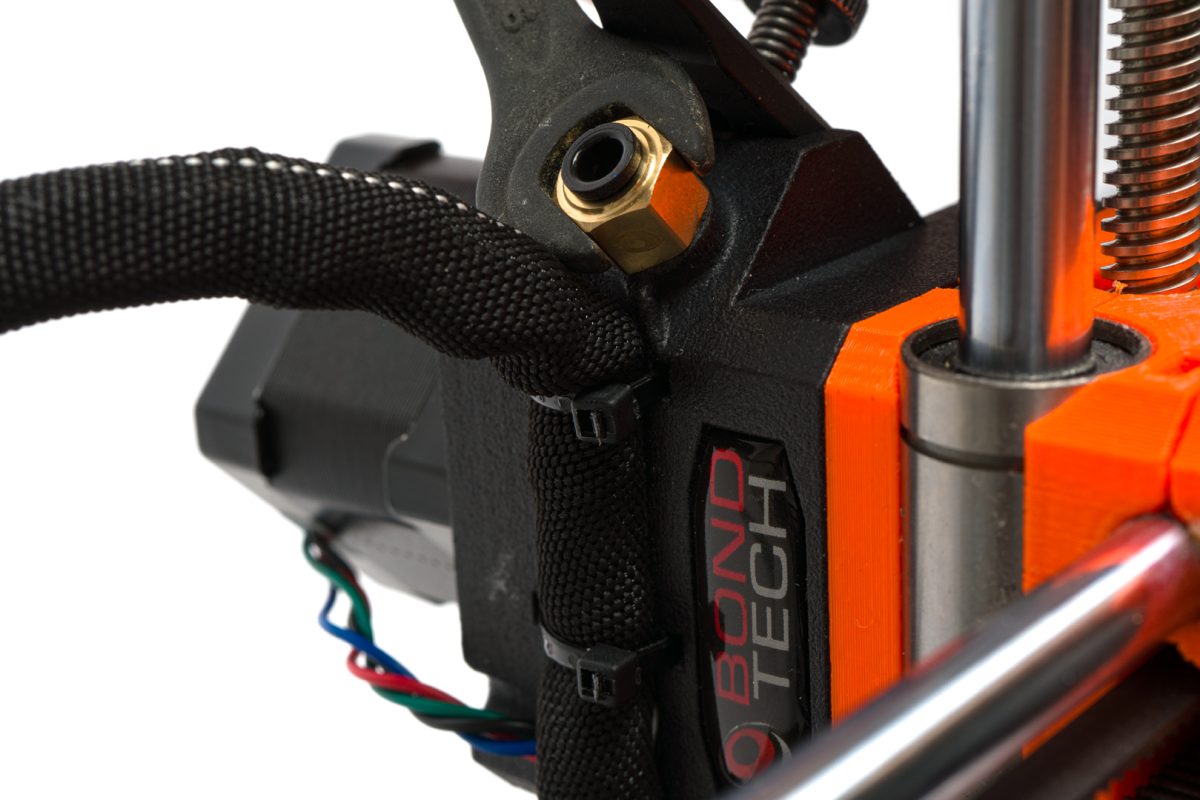

6: Install bowden fittings in the extruder and hotend.

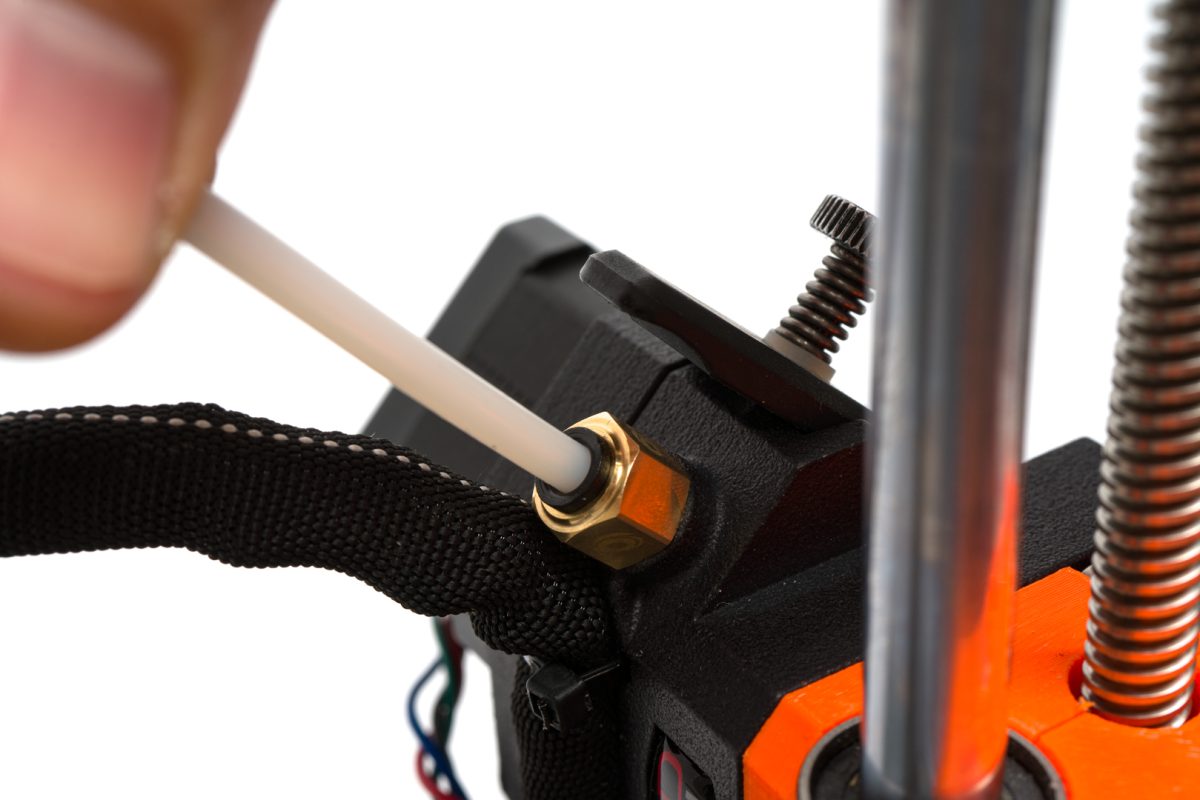

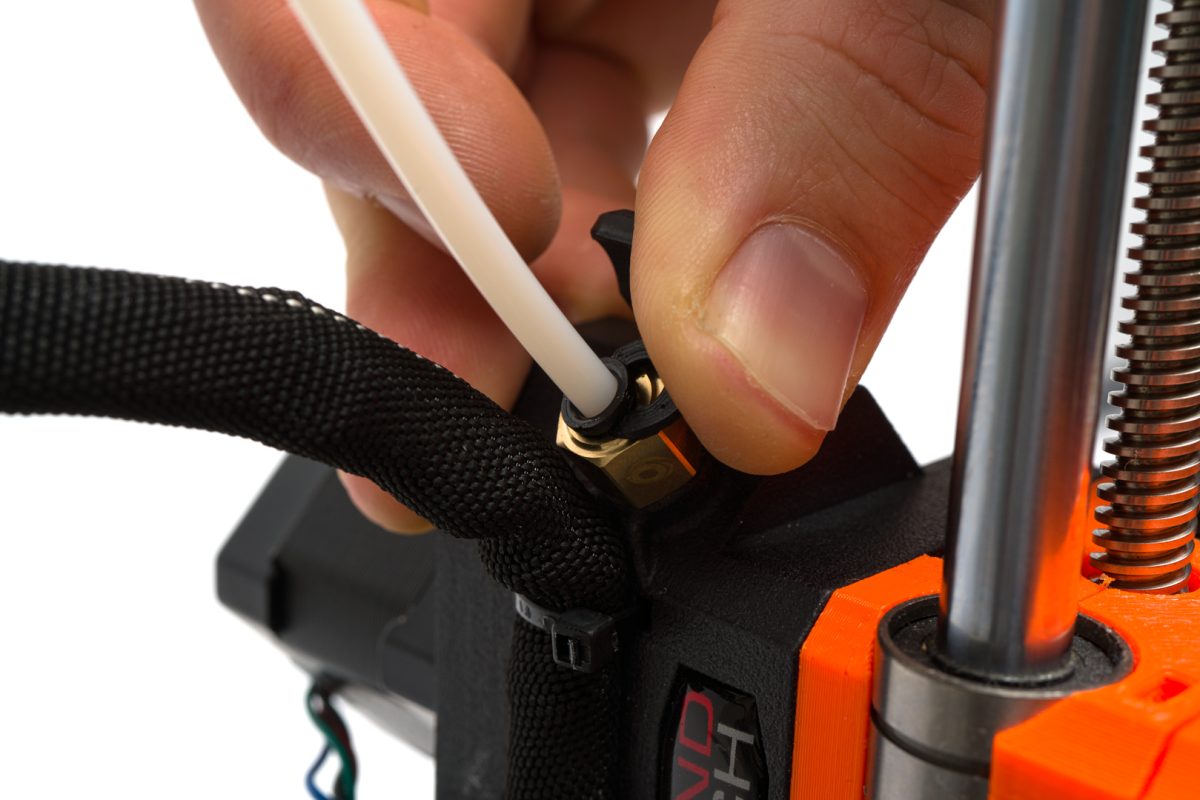

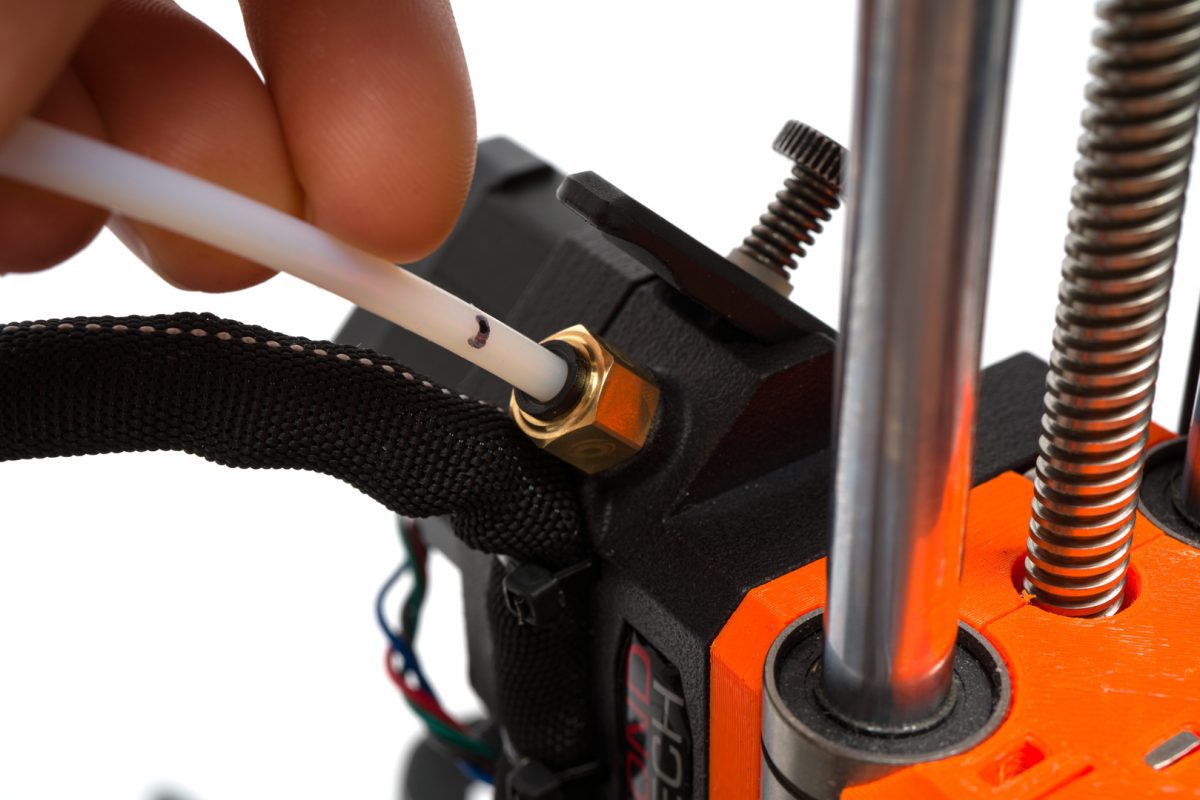

7: Insert PTFE tube into the extruder, push all the way down, Insert Bowden clip.

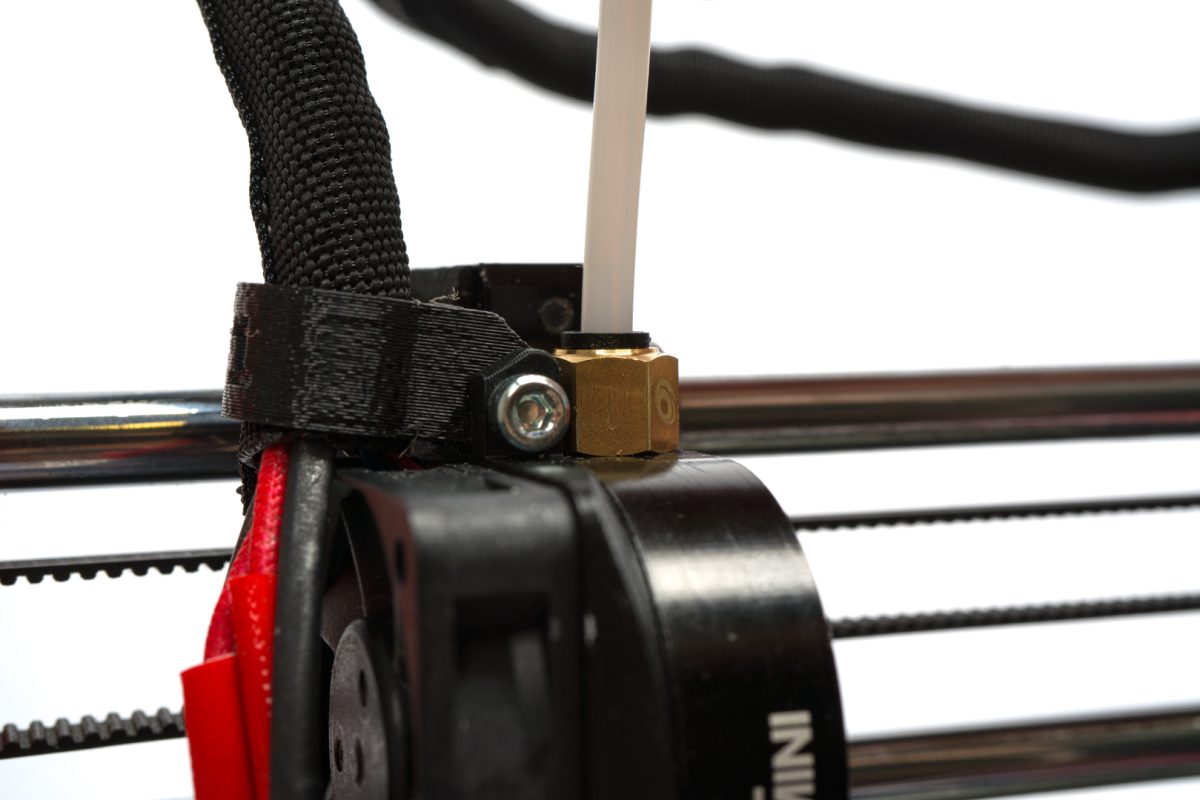

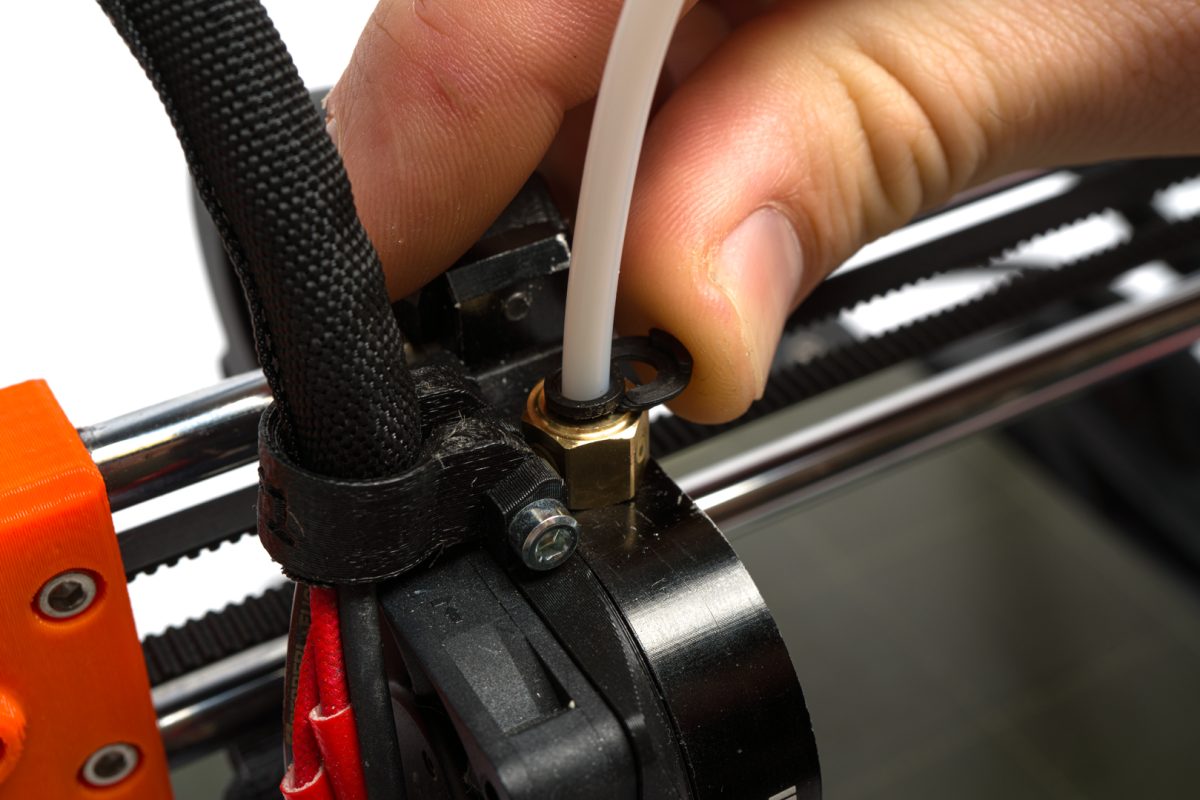

8: Insert PTFE tube into the hotend side pipe fitting, push all the way down, Insert Bowden clip.

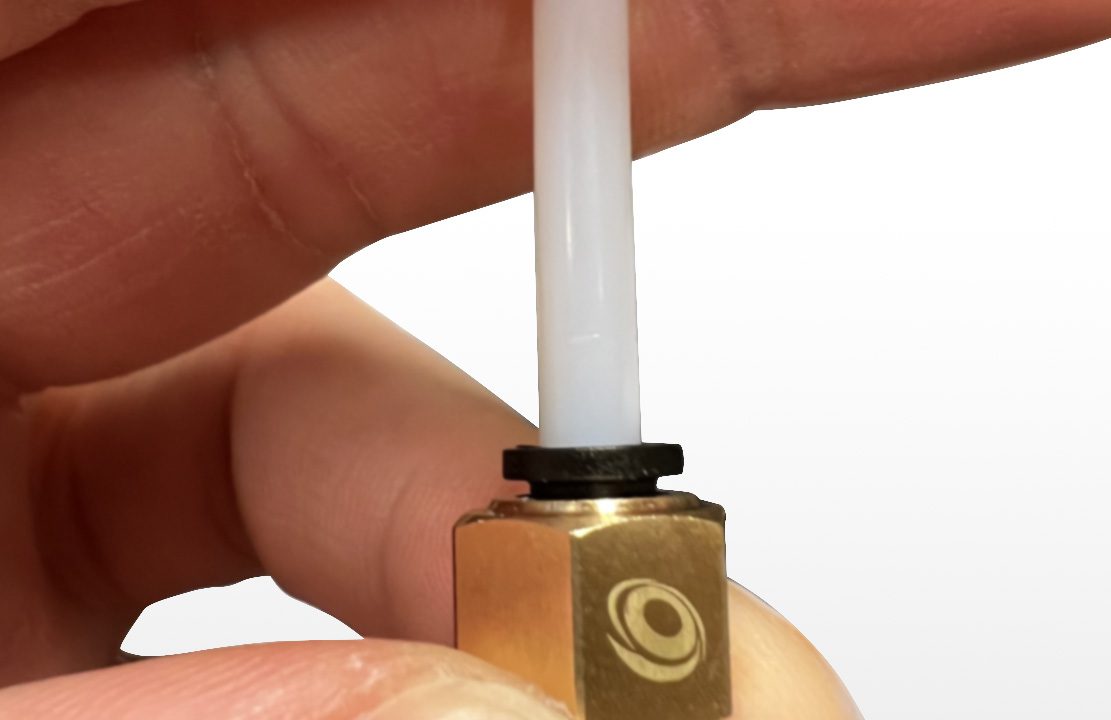

Stretch the PTFE tube up to raise the push-fit collet to make room for the bowden clip.
Stretch the PTFE tube up to raise the push-fit collet to make room for the bowden clip before pushing it in.
Stretch the PTFE tube up to raise the push-fit collet to make room for the bowden clip before pushing it in.

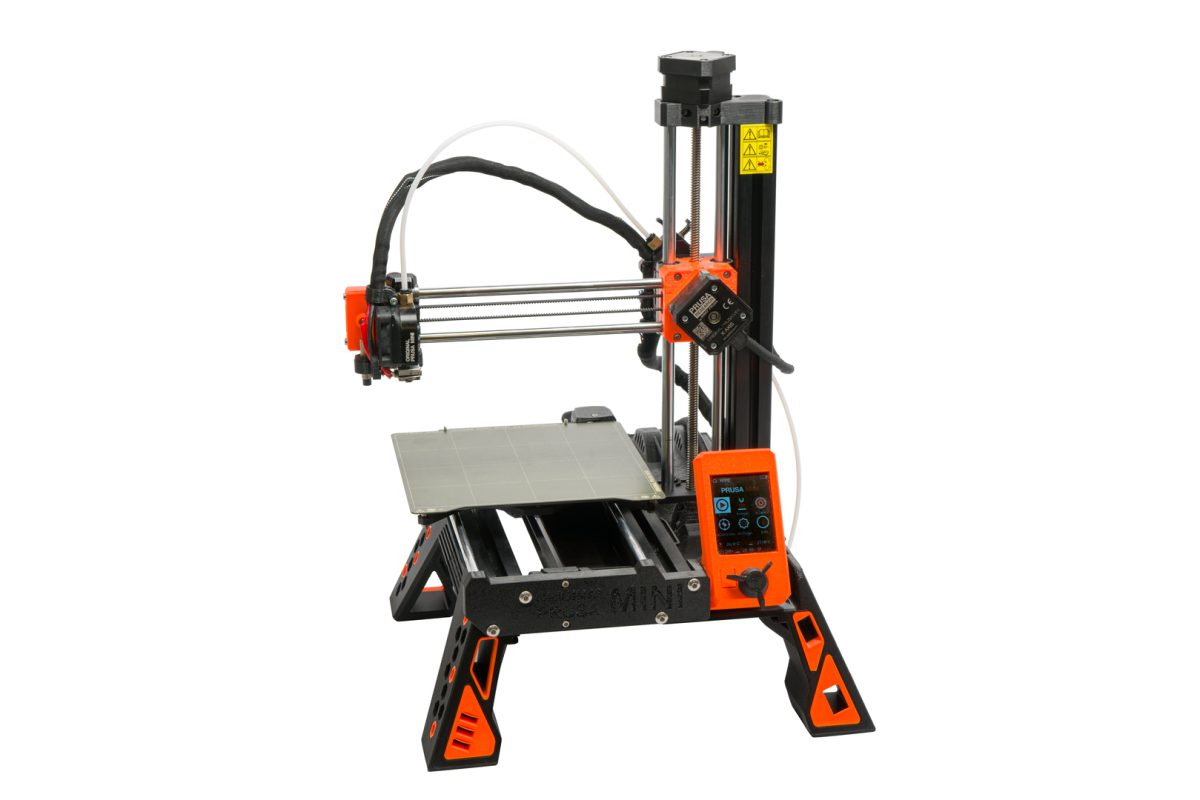

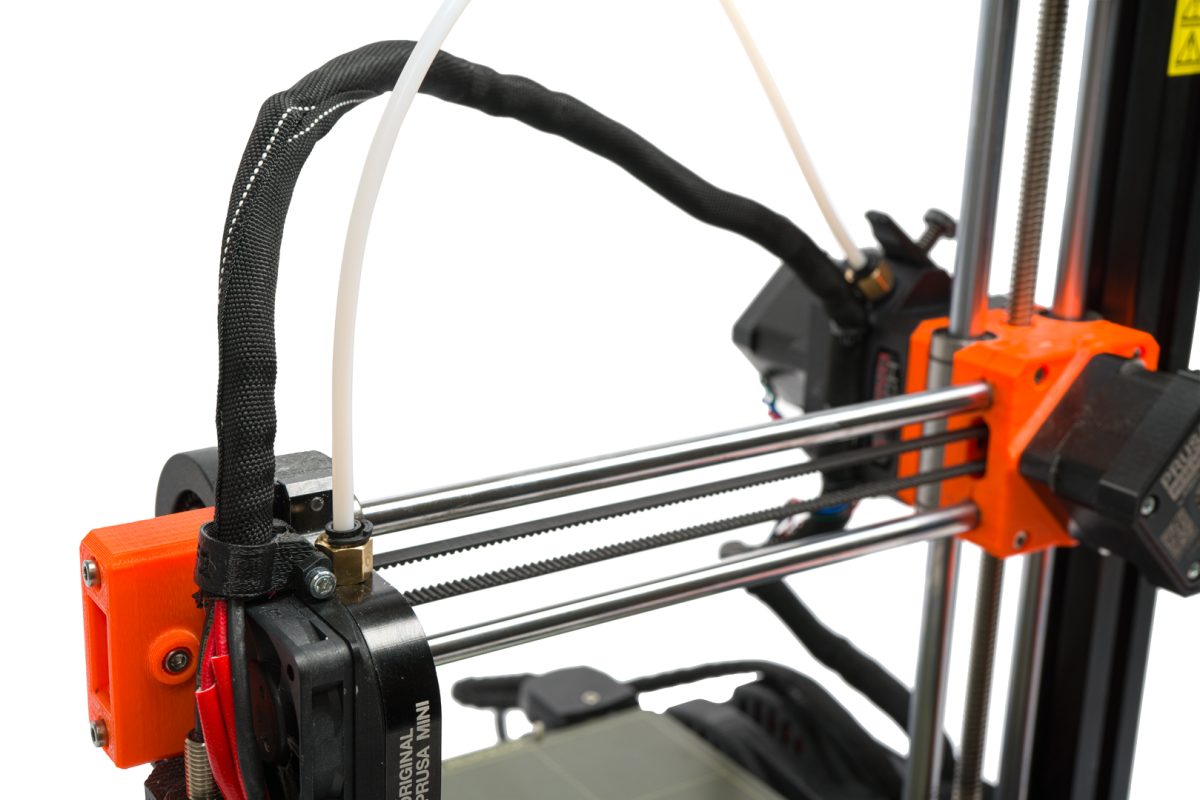

Done!
