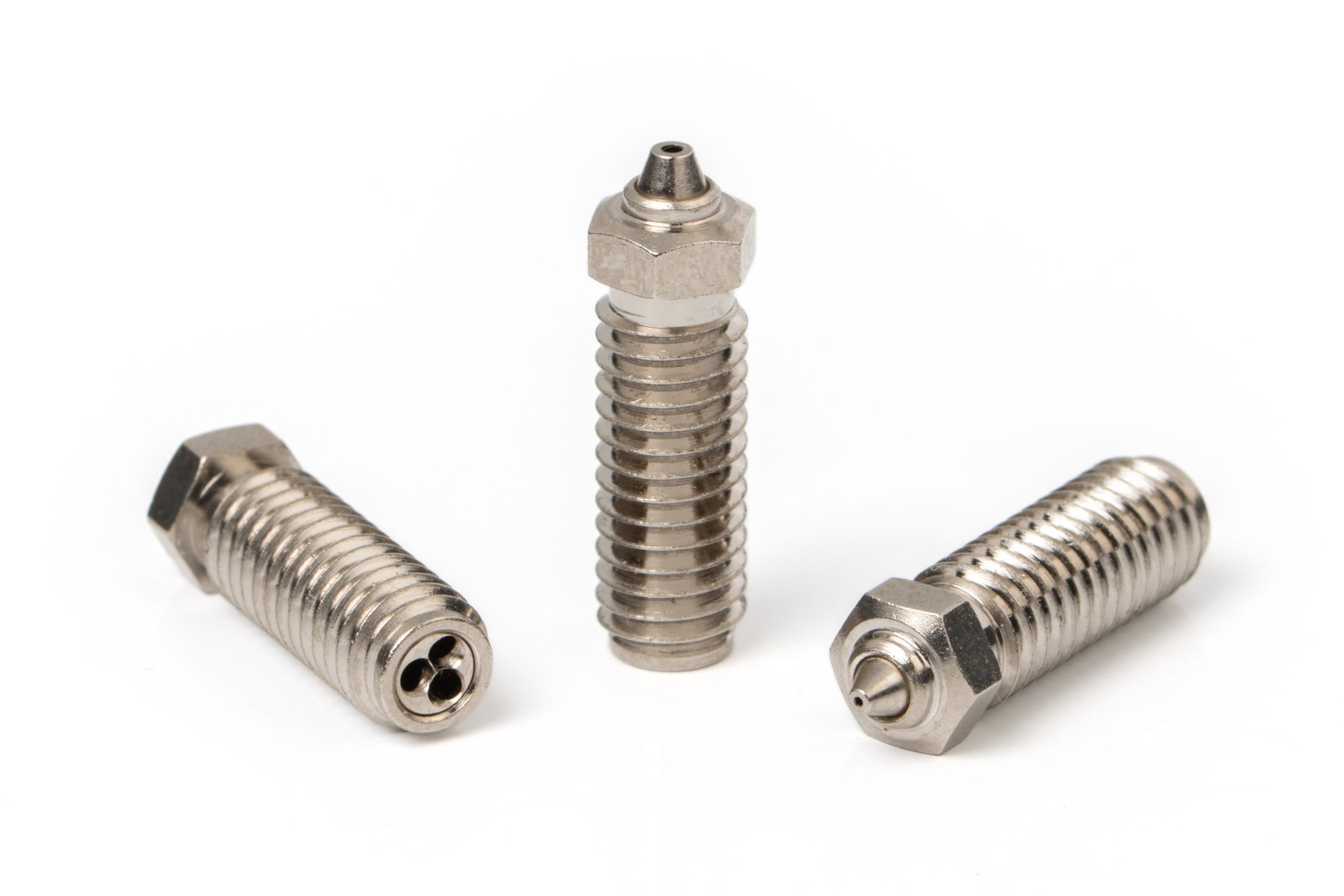

4x Bondtech CHT BiMetal Vol Coated Nozzle
Copper and Hardened Steel nozzles for high flow applications with abrasive materials.
Nozzles are supplied with Nickel Coating (grey color).
Increase the Max Volumetric Flow of your Volcano style heat block.
These nozzles are manufactured by Bondtech in-house,
and will fit the following blocks/printers:
- E3D Volcano blocks
- Other Volcano type blocks
- Artillery Sidewinder X1 and X2
- Anycubic Vyper
- FLSUN Super Racer
- Artillery Genius Pro
- Anycubic Kobra and Kobra Max
- Lulzbot TAZ MOARstruder
- Others compatible with Volcano…
Price:
Original price was: $179.60.$159.90Current price is: $159.90.
Available on backorder
Select Currency
Select Country
Copper is a soft material and doesn't withstand high mechanical efforts. For Carbon or Glass fiber loaded abrasive filaments use only 0.6, 0.8 and 1.0mm nozzle size. For metal, wood, glitter or other particle loaded abrasive filaments you may use the 0.4mm nozzle size.
ALERT : Avoid Cold Change Of Bondtech CHT Nozzles
Before removing or tightening any Bondtech CHT nozzle, heat it up to 280C, or at least above 250C.
Use at most 1.0 Nm torque. Recommended Torque is 0.5 Nm.ALERT : Size limitation for fiber loaded filaments
ALERT : For particle loaded filaments
Bondtech CHT BiMetal Vol Coated 4 Nozzles Pack Features
-
- Copper body;
- Hardened Steel inserts;
- Nickel Coating;

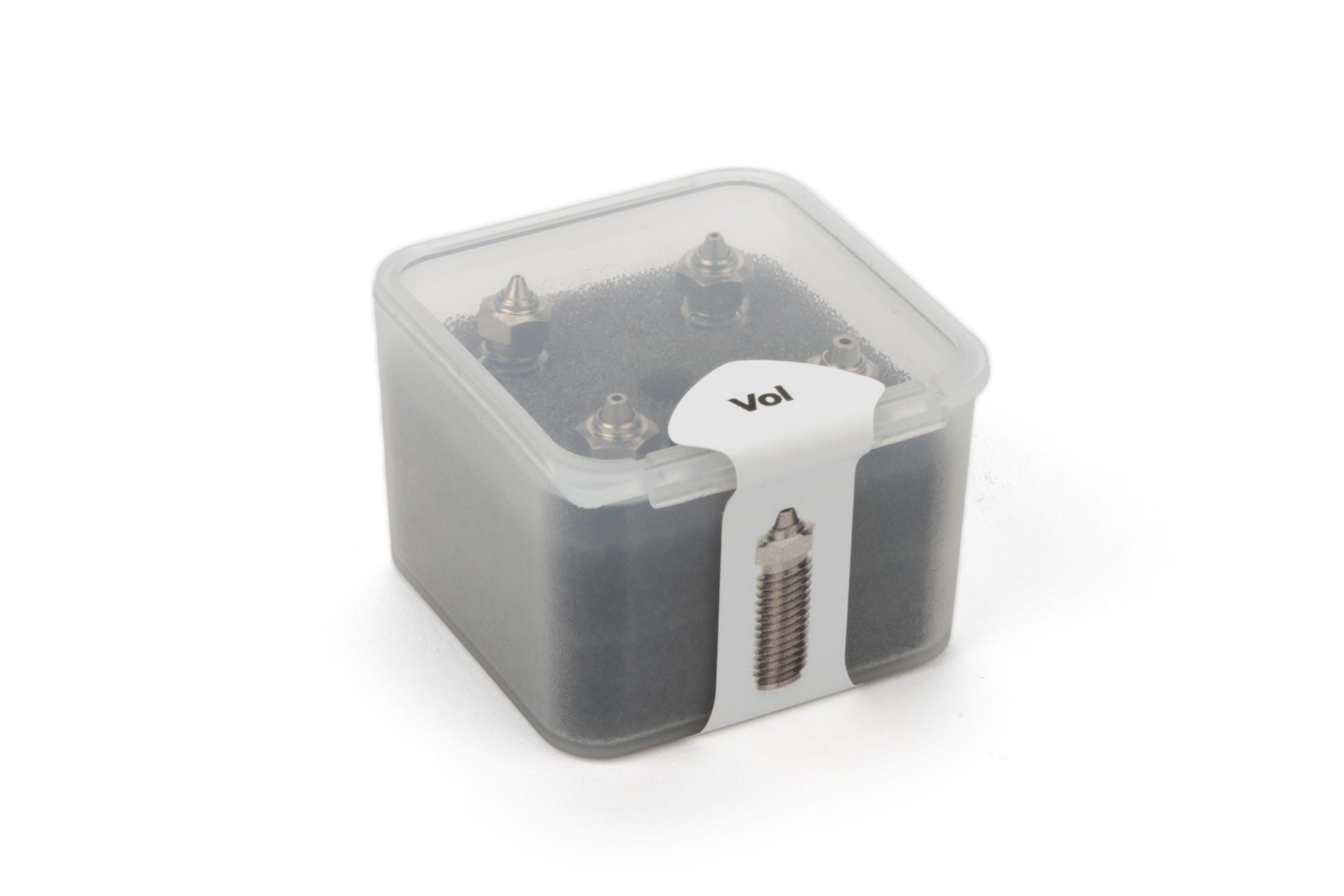

- 4 units per pack;

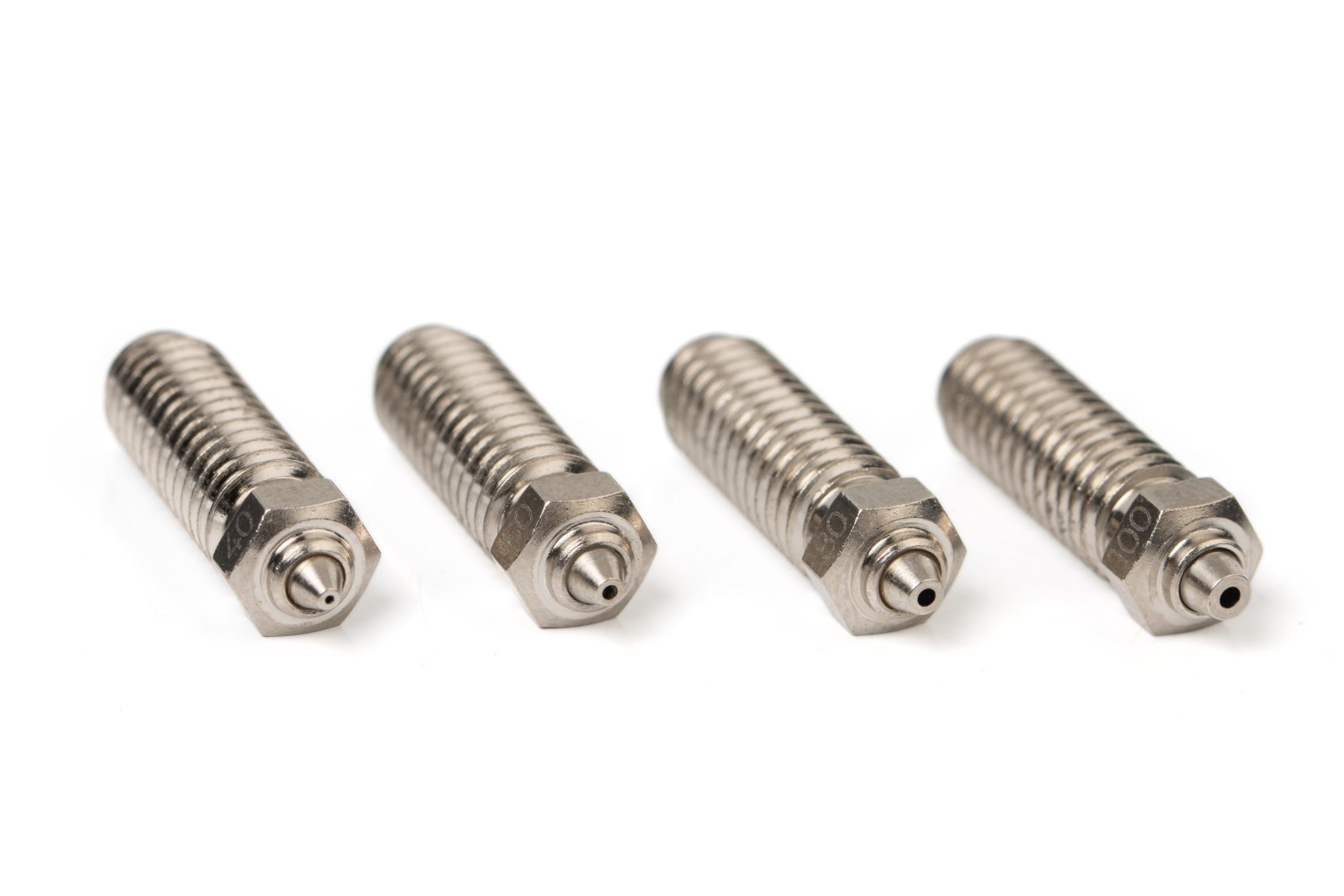

- Sizes : 1x 0.40; 1x 0.60; 1x 0.80; 1x 1.0mm;
- Optimized for 1.75mm filament;
- Compatible with 2.85mm filament.
- Requires 6mm wrench
Bondtech CHT BiMetal Vol Coated Nozzle Advantages
- Abrasive-proof to work with Carbon and Glass fiber composite materials;
- Higher melt capacity by increasing the surface area of the heating walls
- Flow Rate gains between 25 and 65%
- Competitive price/performance price
- Machined with ultra-precision

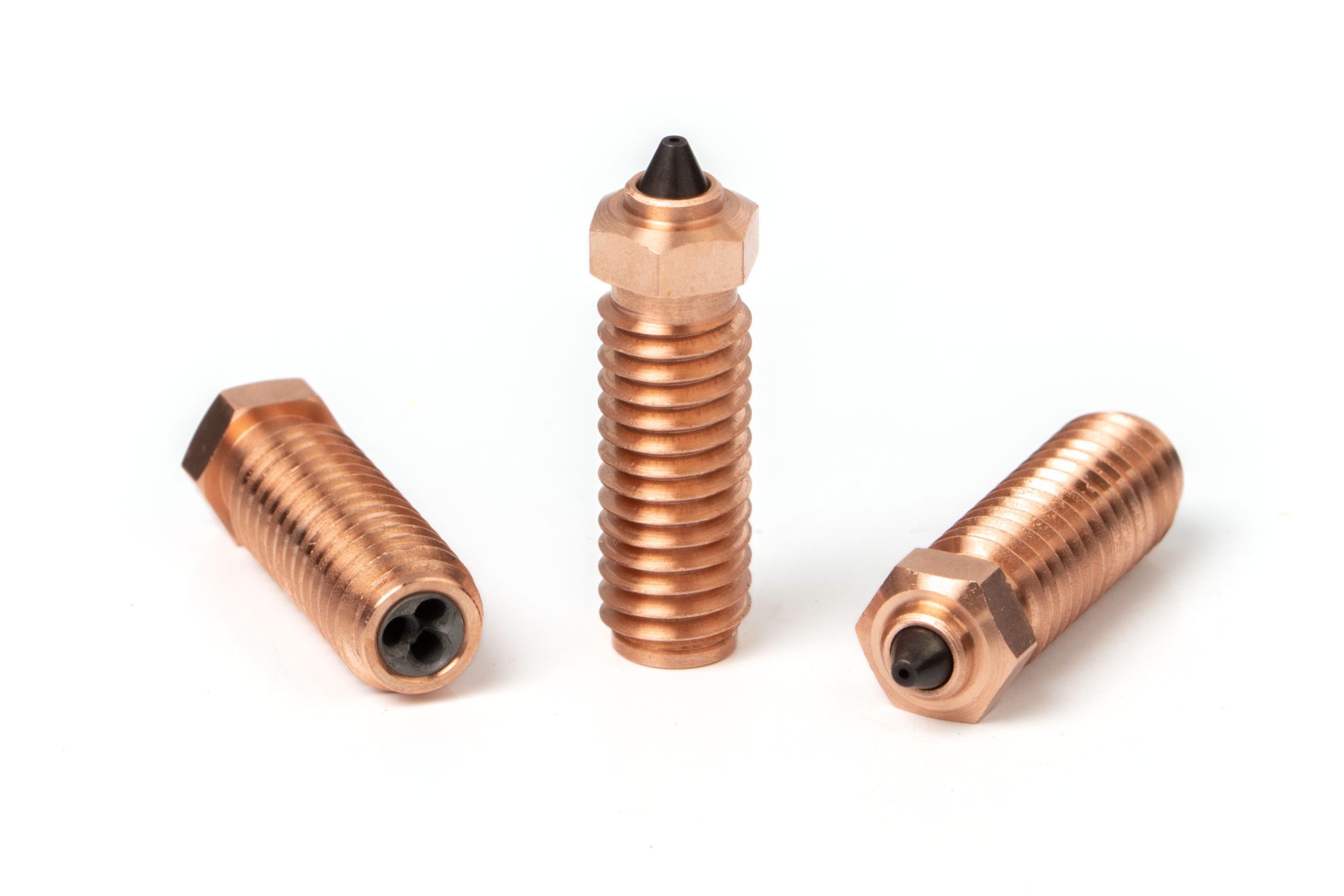

- Copper body and Hardened Steel inserts nozzle with Nickel coated surface
- Follows nozzle standard:
- Volcano (M6×1×14.5×21)
- May be used with 1.75 or 2.85mm hotends.
Flow Rate gains may vary. Results depend on the hardware, materials and print settings used.
| Freight Weight | 19.6 g |
|---|---|
| Dimensions | 4 × 3 cm |
| Nozzle size | 0.40, 0.60, 0.80, 1.00 |
Product Videos
Video reviews
Coming soon…
Flow Rate Comparison
Comparing a standard 0.6 Volcano nozzle with a 0.6 CHT Volcano nozzle
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm CHT |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 650 | 26.06 |
| 210 °C | 810 | 32.47 |
| 220 °C | 910 | 36.48 |
| 230 °C | 1090 | 43.70 |
| 240 °C | 1175 | 47.10 |
| 250 | 1250 | 50.11 |
| 260 °C | 1360 | 54.52 |
| 270 °C | 1450 | 58.13 |
| 280 °C | 1580 | 63.34 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
| Room Temperature | 20 - 25 °C |
| Material | HT-PLA |
| Manufacturer | add:north |
| Vref ( current ) | ( 500mA ) |
| Extruder | LGX 1.75 |
| Arm Position | 0 1 2 3 4 5 |
| Motor | LDO Nema17 |
| Hotend | E3D Volcano |
| Nozzle | 0.6mm Standard |
| Nozzle ( °C ) | Feed Rate | Flow Rate (mm^3/s) |
| 200 °C | 520 | 20.85 |
| 210 °C | 585 | 23.45 |
| 220 °C | 630 | 25.26 |
| 230 °C | 705 | 28.26 |
| 240 °C | 750 | 30.07 |
| 250 °C | 810 | 32.47 |
| 260 °C | 865 | 34.68 |
| 270 °C | 910 | 36.48 |
| 280 °C | 960 | 38.48 |
add:north recommended temperature for HT-PLA: 200 - 230 °C
Bondtech CHT Volcano Flow Rate Gains
| ( °C ) | ( mm^3/s ) | ( % ) |
| Nozzle Temperature | Absolute Increase | Relative Increase |
| @ 200 °C | + 5.21 | + 25% |
| @ 210 °C | + 9.02 | + 38% |
| @ 220 °C | + 11.22 | + 44% |
| @ 230 °C | + 15.43 | + 55% |
| @ 240 °C | + 17.04 | + 57% |
| @ 250 °C | + 17.64 | + 54% |
| @ 260 °C | + 19.84 | + 57% |
| @ 270 °C | + 21.65 | + 59% |
| @ 280 °C | + 24.85 | + 65% |
