BMG IDGA Retro-fit Set
Reduce the runout of the main drive gear on your Bondtech BMG Dual Drive extruder.
A very solid, reliable and improved solution from Bondtech that provides a slight improvement to the print surface quality.
Units will ship starting week 21 ( 22 to 26th May )
Price:
$18.00
In stock (can be backordered)
Select Currency
Select Country
For the necessary tolerances with the plastic housing of the several compatible extruders and their versions along the last years, the housings will allow some axial motion along the main shaft.
This motion doesn’t affect the performance of the IDGA and actually it allows the IDGA to self-center with the filament.
This Integrated Drive Gear Assembly Set is compatible with:
- All Bondtech BMG series extruders;
- All Bondtech upgrade kits for Prusa i3;
- All Bondtech upgrade kits for Prusa Mini;
- All Bondtech DDX Direct Drive eXtruders for Creality;
- BMG-HT for Funmat HT;
- Other BMG type extruders using the original Bondtech main shaft assembly and primary drive gears.

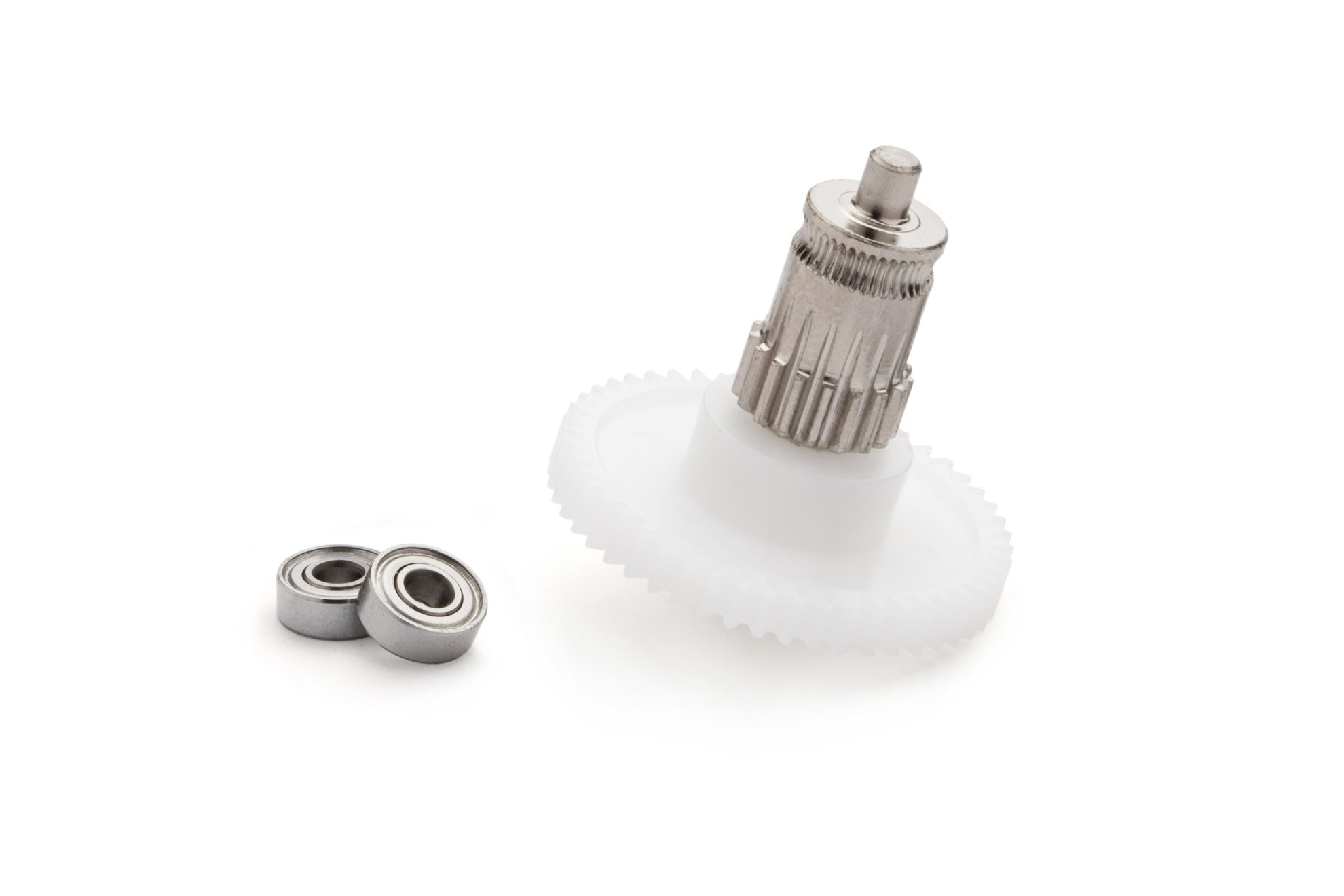

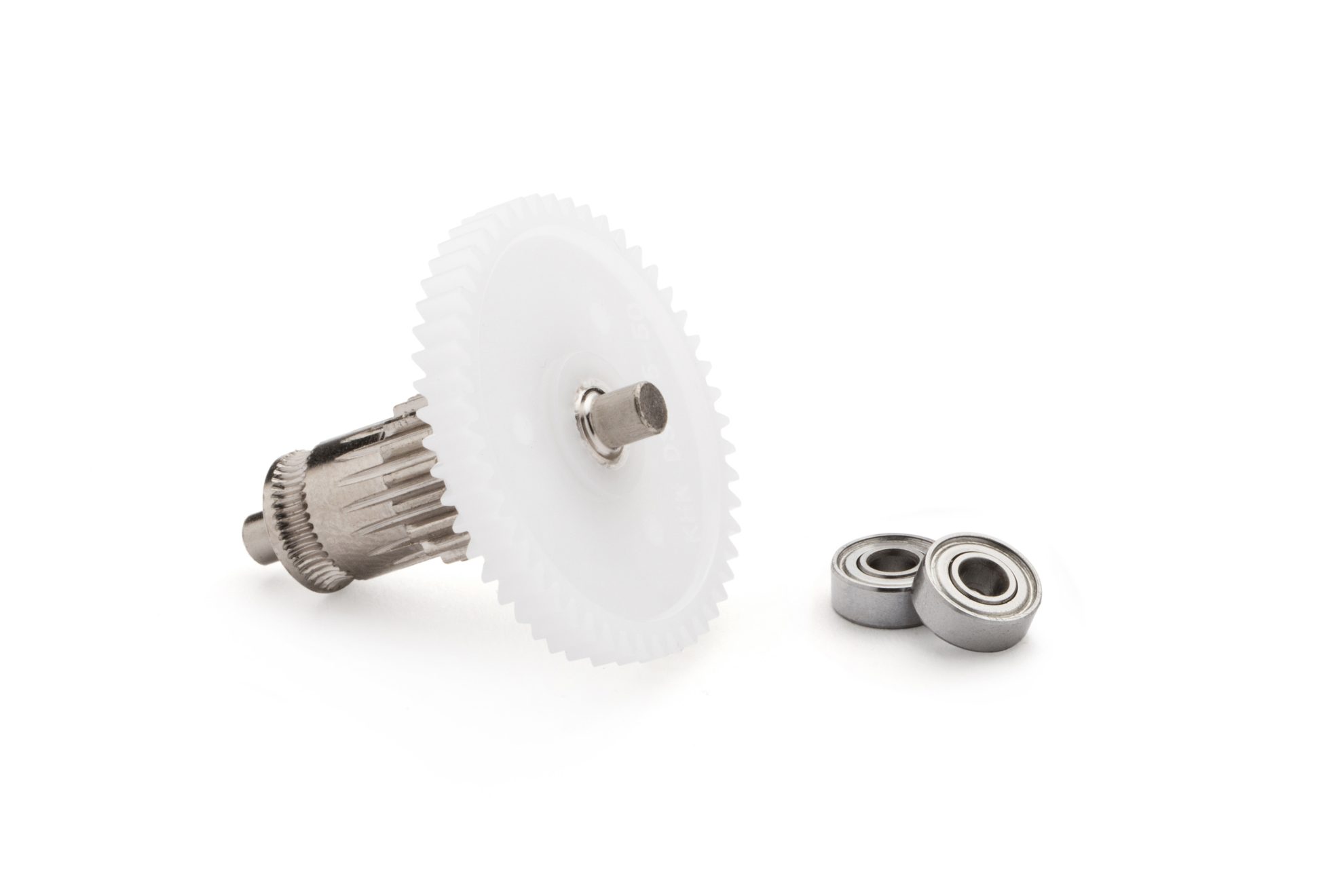

It must be used with 3x8x3.0 mm ball bearings (INCLUDED).
This IDGA, Integrated Drive Gear Assembly, replaces the following mini drive train items:
- Main shaft;
- Main gear;
- Set screw;
- Primary drive gear.
Secondary drive gear, secondary shaft and secondary needle bearings ARE NOT SUPPLIED.
To purchase a full drive gear set with IDGA use this product instead:
BMG Drive Gears IDGA Kit
This retro-fit set may also replace the following product:
DDX Integrated Drive Gear Assembly
Technical Specification
- Shaft length: 27.6 +/-0.08mm
- Shaft length to support ball bearings : < 3.3mm – 3.3mm >
- Filament teeth’s center to end of shaft : < 21.84mm – 6.30mm >
- Number of drive gear teeth : 17
- Drive gear teeth length : 4mm
- Integrated drive gear Material: Hardened Steel
Materials Compatibility:- Flexible : yes;
- Rigid : yes;
- Abrasive : yes.
- Number of main gear teeth : 50
- Main gear teeth length : 3mm
| Freight Weight | 10.6 g |
|---|---|
| Dimensions | 8 × 6 × 2.49 cm |
SETUP GUIDES
Click one image below to open/download a PDF file with the step by step guide that best fits your case.
IDGA / RIDGA Compatibility Table
Information to be available shortly
SKU
15119
15149
15165
15167
15169
Short Name
DDX IDGA
OEM RIDGA
BMG IDGA
OEM RIDGA v2
OEM IDGA
Ballbearings
4x8x3 mm
4x8x3 mm
3x8x3 mm
5x8x2.5 mm
5x8x2.5 mm
All Bondtech DDX
BMG-HT
All BMG / BMG-M
All BMG-X2 / BMG-X2-M
All Bondtech kits for Prusa
HextrudORT
Sherpa Mini
Mini Stealth Burner
Voron CW2
Comments
Name updated
Will be replaced later
Name updated
Will be replaced later
Available now
Not available yet
Not available yet
